2025 E-450 STRIPPED CHASSIS

Key Features

7.3L V8 Gas Engine

This proven pushrod V8 engine features an in-block cam design with variable cam-timing that helps optimize power across the entire powerband. The standard 7.3L V8 Gas Engine is rated at 325 horsepower and 450 lb.-ft. of torque¹¹ at 3,800 rpm. *

*Horsepower and torque ratings are independent attributes and may not be achieved simultaneously.

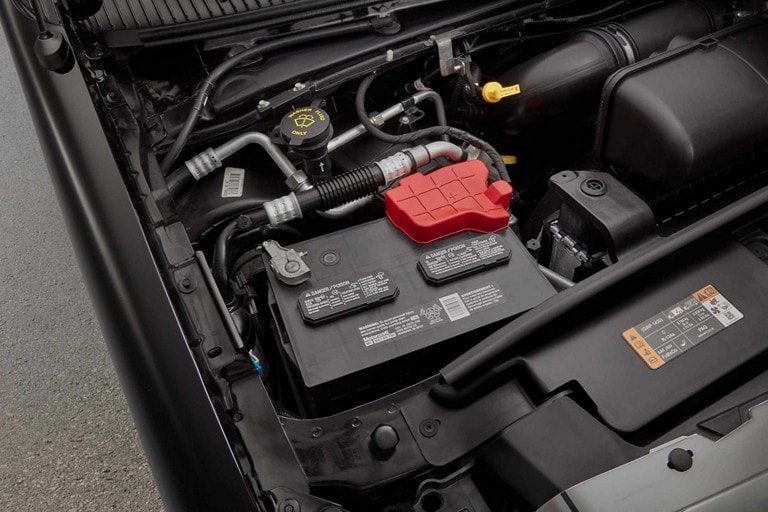

Close-up of the Maintenance-Free 78 Amp-Hr Battery on 2025 Ford E-Series Stripped Chassis

Battery – Heavy-Duty, 78-AMP-HR

A robust 78-Amp-Hr Heavy-Duty Battery is standard on all 2025 E-Series models.

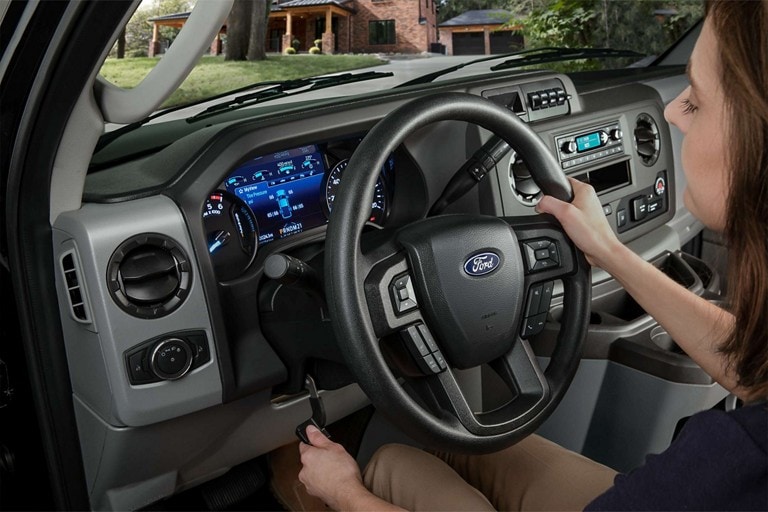

A person adjusting the steering column and steering wheel in a 2025 Ford E-Series Stripped Chassis

Tilt/Telescoping Steering Column and Wheel

All Stripped Chassis models now come equipped with a Tilt/Telescoping Steering Column to help maximize your comfort level behind the wheel and potentially reduce the strain that comes with long drives.

Interior Features

Packages

Power and Handling

Handling

Optional

Wheelbase - 158"
Wheelbase - 176"

Power

Standard

7.3L V8 Gas Engine Open image overlay for 7.3L V8 Gas Engine
Alternator – 210-Amp Open image overlay for Alternator – 210-Amp
Auxiliary Fuel Port
Battery — Heavy-Duty, 78-Amp Open image overlay for Battery — Heavy-Duty, 78-Amp
Daytime Running Lights
Electronic Stability Control (ESC)
Engine Block Heater
Traction Control Open image overlay for Traction Control
Fuel Tank - 208 Litres (55 Gallons) – E-450 only
TorqShift^® SelectShift^® 6-Speed With Tow/Haul Mode Open image overlay for TorqShift^® SelectShift^® 6-Speed With Tow/Haul Mode

Optional

Alternator – 240-Amp
Alternator – Dual 240/157-Amp
CNG/Propane Gaseous Engine Prep Package Open image overlay for CNG/Propane Gaseous Engine Prep Package
Speed Limiting Option
Stability Control (ESC) Delete

Wheels & Tires

Standard

Tires - LT225/75Rx16E All Season
Wheels - (6) 16" x 6" - Steel - Painted White Open image overlay for Wheels - (6) 16" x 6" - Steel - Painted White

Optional

Tires - Spare Tire & Wheel (With Restrictions)

Specifications

Chassis Specifications

	E-Series Stripped Chassis
Alternator	210-Amps, 240-Amps (O), Dual 240/157 Amps (O)
Axle (front)	Twin I-Beam IFS
Axle (rear)	3,855 - 4,354 kg
Battery	78 Amp-hr, 750 CCA
Brakes	Power 4-wheel disc anti-lock, with traction control
Engine	7.3L 2V DEVCT NA PFI V8 Gas (Premium-Rated Engine)
Frame	Ladder-type, single channel, 36,000 psi steel
Fuel Tank	151-Litres / 208-Litres
GVWR	4,216 - 6,577 kg
Spring (front)	Twin I-beam IFS with computer-selected coil springs and stabilizer bar; 4,200 - 5,000 lbs FGAWR
Spring (rear)	Multi-leaf single stage leaf springs
Stabilizer bars	front & rear
Steering	Power
Transmission	TorqShift^® 6-speed automatic overdrive with Tow/Haul Mode
Wheelbases	3,505 mm / 4,013 mm / 4,470 mm
Over-all Lengths	5,911 mm / 6,419 mm / 6,419 mm
Payloads	2,313 - 4,073 kg
GCWR	5,896 - 9,979 kg

	E-Series Stripped Chassis
Alternator	210-Amps, 240-Amps (O), Dual 240/157 Amps (O)
Axle (front)	Twin I-Beam IFS
Axle (rear)	8,500 - 9,600 lbs
Battery	78 Amp-hr, 750 CCA
Brakes	Power 4-wheel disc anti-lock, with traction control
Engine	7.3L 2V DEVCT NA PFI V8 Gas (Premium-Rated Engine)
Frame	Ladder-type, single channel, 36,000 psi steel
Fuel Tank	40 gallon / 55 gallon
GVWR	11,500 - 14,500 lbs
Spring (front)	Twin I-beam IFS with computer-selected coil springs and stabilizer bar; 4,200 - 5,000 lbs FGAWR
Spring (rear)	Multi-leaf single stage leaf springs
Stabilizer bars	front & rear
Steering	Power
Transmission	TorqShift^® 6-speed automatic overdrive with Tow/Haul Mode
Wheelbases	138" / 158" / 176"
Over-all Lengths	232.7" / 252.7" / 252.7"
Payloads	5,100 lbs. to 8,980 lbs
GCWR	13,000 - 22,000 lbs

Engine Specifications

	E-Series
Engine type	7.3L 2V DEVCT NA PFI V8 Gas (Premium-Rated Engine)
Cast	Bosch Multicore MG1CS019
Displacement [ci.]	445
Horsepower (SAE net@rpm)	325 hp @ 3,800 rpm
Torque (lb.-ft. @rpm)	450 lb-ft @ 3,800 rpm
Compression ratio	10.5:1
Bore x stroke (in.)	4.21 x 3.98
Main bearings	5 Main Bearings
Valvetrain	OHV / 2 Valves Per Cylinder
Valve lifters	Pushrod / Rocker arms
Fuel delivery	Port Fuel Injection
Electronic throttle control (ETC)	Std.
Engine oil cooler	Std.
Exhaust	Cast Stainless Steel (LH & RH)
Transmission type	TorqShift® 6-speed automatic overdrive with Tow/Haul Mode
Engine block material	Cast Iron
Cylinder head material	Aluminum

	E-Series
Engine type	7.3L 2V DEVCT NA PFI V8 Gas (Premium-Rated Engine)
Cast	Bosch Multicore MG1CS019
Displacement [ci.]	445
Horsepower (SAE net@rpm)	325 hp @ 3,800 rpm
Torque (lb.-ft. @rpm)	450 lb-ft @ 3,800 rpm
Compression ratio	10.5:1
Bore x stroke (in.)	4.21 x 3.98
Main bearings	5 Main Bearings
Valvetrain	OHV / 2 Valves Per Cylinder
Valve lifters	Pushrod / Rocker arms
Fuel delivery	Port Fuel Injection
Electronic throttle control (ETC)	Std.
Engine oil cooler	Std.
Exhaust	Cast Stainless Steel (LH & RH)
Transmission type	TorqShift® 6-speed automatic overdrive with Tow/Haul Mode
Engine block material	Cast Iron
Cylinder head material	Aluminum

Highlights

	Highlights
Fuel Capacity	151-Litres / 208-Litres
Drive Type	4x2
Available Engines	7.3L V8 Premium-Rated Engine
Horsepower	325 hp @ 3,800 rpm
Torque	450 ft-lbs @ 3,800 rpm
Transmission	TorqShift® 6-speed automatic with overdrive and tow/haul mode
Wheelbase	3,505 mm, 4,013 mm, 4,470 mm
Maximum Payload	2,313 - 4,073 kg
Wheels Available	16" x 7" Painted Gray Steel Wheels (SRW only ) 16" x 6" Painted White Steel Wheels (DRW only)
Warranty	Bumper to Bumper 3 years / 60,000 km; Powertrain: 5 years / 100,000 km; Safety Restraint System: 5 years / 100,000 km

	Highlights
Fuel Capacity	40 gallon (Std. E-350) / 55 gallon (Std. E-450)
Drive Type	4x2
Available Engines	7.3L V8 Premium-Rated Engine
Horsepower	325 hp @ 3,800 rpm
Torque	450 ft-lbs @ 3,800 rpm
Transmission	TorqShift® 6-speed automatic with overdrive and tow/haul mode
Wheelbase	138", 158", 176"
Maximum Payload	5,100 lbs. to 8,980 lbs
Wheels Available	16" x 7" Painted Gray Steel Wheels (SRW only ) 16" x 6" Painted White Steel Wheels (DRW only)
Warranty	Bumper to Bumper 3 years / 60,000 km; Powertrain: 5 years / 100,000 km; Safety Restraint System: 5 years / 100,000 km
