Handling
Standard
- Axle - Front, Twin I-Beam
- Axle - Rear, Full Float
- Traction Control
Optional
- Front Axle GAWR - 2,268 kgs (5,000 lbs.) upgrade
E-350 SRW CUTAWAY
Key Features

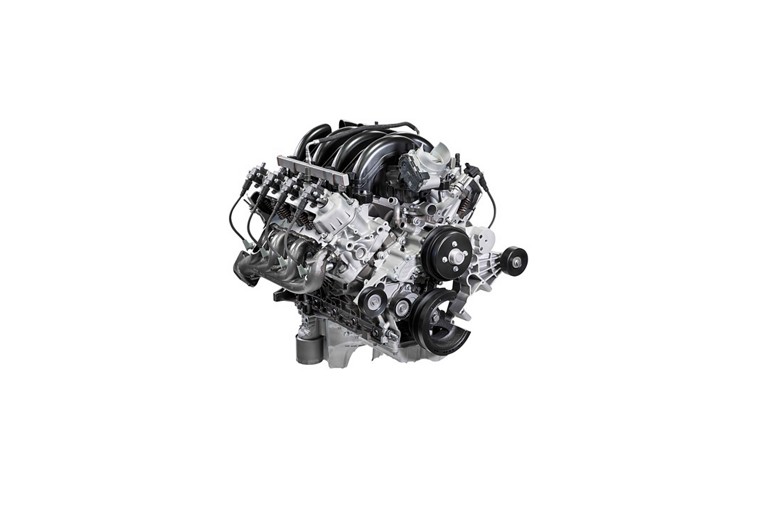

7.3L V8 Gas Engine
This proven engine with premium rating features a single overhead-cam design and dual-equal variable-cam timing that helps optimize power across the entire power band. The standard 7.3L V8 Gas Engine with TorqShift® 6-Speed Automatic Transmission with the 2025 E-350/E-450 is rated at 325 horsepower and 450 lb.-ft. of torque at 3,750 rpm. *
...less
*Horsepower and torque ratings are independent attributes and may not be achieved simultaneously.

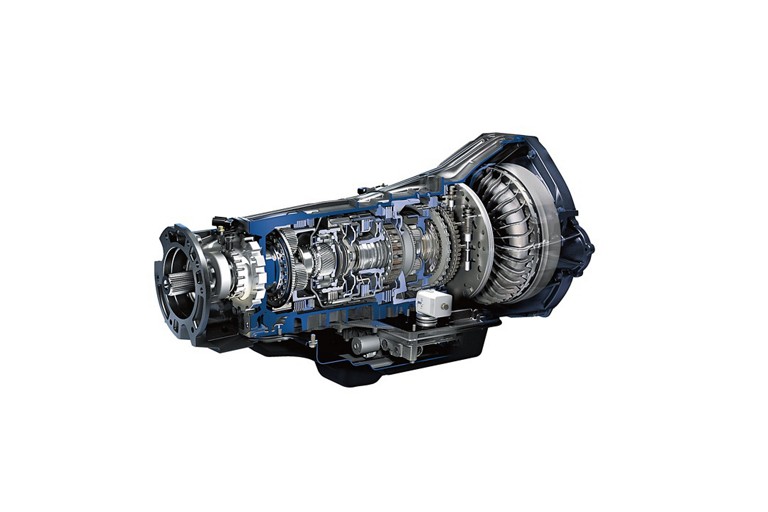

TorqShift® 6-Speed Automatic with Tow/Haul Mode
The Ford TorqShift® 6-Speed Automatic Transmission is designed and built by Ford to handle the high-performance demands of the standard 7.3L V8 Gas Engine (300 horsepower at 3,750 rpm and 425 lb.-ft. of torque at 3,250 rpm). *
...less
*Horsepower and torque ratings are independent attributes and may not be achieved simultaneously.

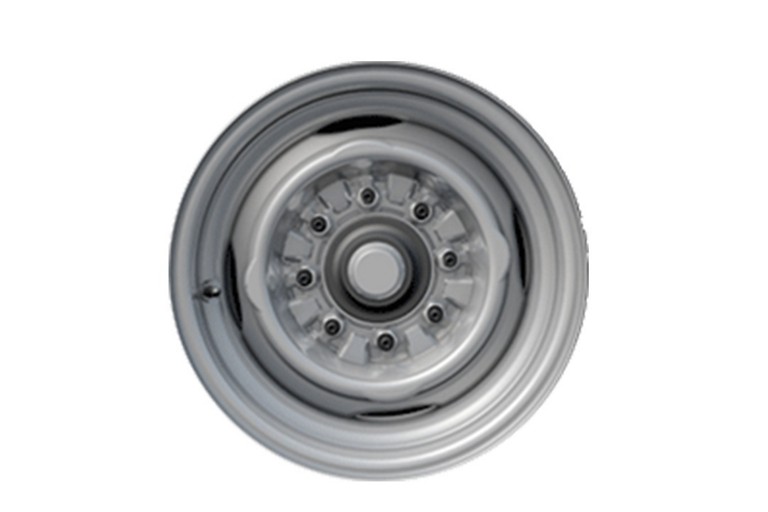

16" x 7" Grey-Painted Steel Wheels
These steel wheels are available on single-rear-wheel models. Grey-painted steel wheels are standard.
...less
Power and Handling
Power
Standard
- 7.3L V8 Gas Engine
- TorqShift® 6-Speed Automatic with Tow/Haul Mode
- Alternator - 210 Amp
- Battery - Maintenance-Free, 78 Amp-Hr
- Auxiliary Fuel Port
- Engine Block Heater
- Fuel Tank - 151 Litre
Optional
- Speed Limitation – 121 KM/Hr (75-mph) governed top speed (fleet only)
- Alternator - 240 Amp
- Alternator - Dual - 240/157 Amp
- Battery - Dual, 78 Amp
- Speed Limitation – 105 KM/Hr (65-mph) governed top speed (fleet only)
Wheels & Tires
Standard
- Tires - LT245/75R16E All Season (Hankook)
- Wheels - Spare Tire and Wheel Delete
Optional
- Tires - Spare Tire & Wheel
Interior Features
Comfort and Convenience
Standard
- Front Air Conditioning
- Slimline Engine Cover Console
- Instrument Panel - with Tachometer (Medium Flint)
- Dual Smart USB Ports
- PowerPoints - Dual 12-Volt in Instrument Panel, Single in Glove Box
- Sun Visors
- Floor Covering - Front, Black Vinyl
- Step Well Pads - Black plastic
- Horn - Electric, Dual Note
- Front Dome Lamp
- Windshield Wipers - Interval
- Fleet Telematics Modem
- Front-Door Trim Panels with Integrated Map Compartment
- Hill Start Assist
- Steering Column - with Tilt/Telescoping Wheel
Optional
- B-Pillar Trim Kit
- Engine Console Cover - Delete
- Cruise Control
- Electronic Message Centre
- Power Windows and Locks Group
- 110V A/C Outlet
- User-Defined Upfitter Switches (4) - 30, 30, 15, 10 - amp
- Upfitter Interface Module
- Mirror - Interior Day/Night rearview mirror
Entertainment Systems
Standard
- Bluetooth® Capable AM/FM Stereo with Clock Display
Optional
- Audio - Prep Package (Includes Antenna, 2-Speakers, Grilles & Wiring normally provided)
- Audio - Prep Package (Includes Antenna, 4-Speakers, Grilles & Wiring normally provided)
- Audio - 4-speaker Upgrade Package
Seating
Standard
- Seats - Dual High-Back Vinyl Buckets
Optional
- Seats - Dual High-Back Cloth Buckets
- 6-Way Power Driver Seat
- Passenger Seat Delete
- Seat - Captain's Chair - Driver Side Untrimmed
- Seat - Captain's Chair - Driver Side Only - Mid Series Cloth
- Manual Pedestal with 2-Way Adjuster
- Power Seat Prep Package (Motorhome / Shuttle Bus)
- Seat Prep Package - Manual with 2-Way Adjuster (Shuttle Bus)
- Seat Prep Package - Power (Shuttle Bus)
- Seats - Dual High-Back Cloth Captain's Chairs
Exterior Features
Appearance
Standard
- Bumper - Painted Black
- Grille - Black Painted
- Headlamps with Autolamp - Dual Sealed-Beam with Fixed Lens
- 16” x 7” Grey-Painted Steel Wheels
Optional
- Bumper - Chrome - Front
- Bumper - Painted White
- Grille - Chrome
- Mirrors - Manual Telescopic Trailer Tow - with Manual Adjust
- Mirrors - Manual Telescopic Trailer Tow - with Power Adjust
- Door-length Running Boards
- Front License Plate Bracket
- 16" x 7" - White-Painted Steel Wheels
- 16" Sport Wheel Cover
- 17.5” x 6” Painted White Steel Wheels
Safety
Safety
Standard
- Front Airbags
- Brakes - 4-Wheel Disc Brakes with Traction Control
- Safety belts -3-Point Shoulder/Lap Belts - All Positions - with Height Adjustable D-Ring
- Electronic Stability Control
Optional
- Airbag - Passenger-Side Cut-off Switch
- Airbag - Delete (passenger side)
Security
Standard
- Daytime Running Lights
Optional
- Remote Keyless Entry
- SecuriLock® Passive Anti-Theft System (PATS)
- Rear View Camera Kit
- Tamper Proof Odometer
- Stability Control (ESC) Delete
Packages
Packages
Optional
- Auxiliary Heater/AC Connector Package with Rear Controls
- CNG / Propane Gaseous Engine Prep Package
- Interior Upgrade Package
- Exterior Upgrade Package
- Trailer Towing Package (Class I)
- Insulation Package
- Auxiliary Heater Connector Prep Package with Rear Fan Controls
- Auxiliary Heater/AC Connector Package
- Ambulance Prep Package
- Motorhome Prep Package
- School Bus Prep Package
- Shuttle Bus Prep Package
- Rear Frame Crossmember - Delete
- Right Hand Door - Delete
- Alternate Lateral Frame Spacers
- Frame Pucks (Isolators)
- Standard Pattern Frame
- Multi Function School Activity Bus Prep Package
- Driver-Assist Technology Package
Specifications
Exterior
| Exterior Dimensions | |||||||
|---|---|---|---|---|---|---|---|
| E-350 Cutaway (SRW) (mm) | E-350 Cutaway (SRW) (mm) | E-350 Cutaway (DRW) (mm) | E-350 Cutaway (DRW) (mm) | E-350 Cutaway (DRW) (mm) | E-450 Cutaway (DRW) (mm) |
E-450 Cutaway (DRW) (mm) | |
| Wheelbase | 3,505 | 4,013 | 3,505 | 4,013 | 4,470 | 4,013 | 4,470 |
| Overall Length | 6,124 | 6,632 | 6,124 | 6,632 | 6,632 | 6,632 | 6,632 |
| Overall Height (Loaded) | 2,042 | 2,040 | 2,040 | 2,037 | 2,035 | 2,032 | 2,032 |
| Overall Width | 2,017 | 2,017 | 2,410 | 2,410 | 2,410 | 2,410 | 2,410 |
| Front Track | 1,763 | 1,763 | 1,763 | 1,763 | 1,763 | 1,763 | 1,763 |
| Rear Track | 1,831 | 1,831 | 1,915 | 1,915 | 1,915 | 1,974 | 1,974 |
| Cab Length | 2,349 | 2,349 | 2,349 | 2,349 | 2,349 | 2,349 | 2,349 |
| Cab Rear to Rear Axle | 2,032 | 2,540 | 2,032 | 2,540 | 2,997 | 2,540 | 2,997 |
| Top of Frame to Top of Cab | 1,382 | 1,382 | 1,382 | 1,382 | 1,382 | 1,483 | 1,483 |
| Rear Axle to End of Frame | 1,740 | 1,740 | 1,740 | 1,740 | 1,283 | 1,740 | 1,283 |
| Load Height (Loaded) | 658 | 658 | 665 | 665 | 665 | 660 | 660 |
| Front Overhang | 879 | 879 | 879 | 879 | 879 | 879 | 879 |
| Estimated Base Curb Weight | 4,559 kg GVWR 2,245 kg | 4,559 kg GVWR 2,273 kg | 5,216 kg GVWR 2,370 kg | 5,216 kg GVWR 2,398 kg / 5,670 kg GVWR 2,398 kg | 5,670 kg GVWR 2,403 kg | 6,350 kg GVWR 2,500 kg / 6,441 kg GVWR 2,500 kg / 6,577 kg GVWR 2,500 kg | 6,350 kg GVWR 2,503 kg / 6,441 kg GVWR 2,503 kg / 6,577 kg GVWR 2,503 kg |
| Exterior Dimensions | |||||||
|---|---|---|---|---|---|---|---|
| E-350 Cutaway (SRW) (in.) | E-350 Cutaway (SRW) (in.) | E-350 Cutaway (DRW) (in.) | E-350 Cutaway (DRW) (in.) | E-350 Cutaway (DRW) (in.) | E-450 Cutaway (DRW) (in.) | E-450 Cutaway (DRW) (in.) | |
| Wheelbase | 138 | 158 | 138 | 158 | 176 | 158 | 176 |
| Overall Length | 241.1 | 261.1 | 241.1 | 261.1 | 261.1 | 261.1 | 261.1 |
| Overall Height (Loaded) | 80.4 | 80.3 | 80.3 | 80.2 | 80.1 | 80 | 80 |
| Overall Width | 79.4 | 79.4 | 94.9 | 94.9 | 94.9 | 94.9 | 94.9 |
| Front Track | 69.4 | 69.4 | 69.4 | 69.4 | 69.4 | 69.4 | 69.4 |
| Rear Track | 72.1 | 72.1 | 75.4 | 75.4 | 75.4 | 77.7 | 77.7 |
| Cab Length | 92.5 | 92.5 | 92.5 | 92.5 | 92.5 | 92.5 | 92.5 |
| Cab Rear to Rear Axle | 80 | 100 | 80 | 100 | 118 | 100 | 118 |
| Top of Frame to Top of Cab | 54.4 | 54.4 | 54.4 | 54.4 | 54.4 | 58.4 | 58.4 |
| Rear Axle to End of Frame | 68.5 | 68.5 | 68.5 | 68.5 | 50.5 | 68.5 | 50.5 |
| Load Height (Loaded) | 25.9 | 25.9 | 26.2 | 26.2 | 26.2 | 26 | 26 |
| Front Overhang | 34.6 | 34.6 | 34.6 | 34.6 | 34.6 | 34.6 | 34.6 |
| Estimated Base Curb Weight | 10,050 lb GVWR 4,950 lbs. | 10,050 lb GVWR 5,012 lbs. | 11,500 lb GVWR 5,225 lbs. | 11,500 lb GVWR 5,287 lb / 12,500 GVWR 5,287 lb | 12,500 GVWR 5,297 lbs. | 14,000 lb GVWR 5,512 lb/ 14,200 GVWR 5,512 lb / 14,500 GVWR 5,512 lb | 14,000 lb GVWR 5,519 lbs / 14,200 GVWR 5,519 lbs / 14,500 GVWR 5,512 lbs |
Interior
| Interior Dimensions | ||
|---|---|---|
| E-350 Cutaway (mm) | E-450 Cutaway (mm) | |
| First row Head Room | 1,068 | 1,068 |
| First row Shoulder Room | 1,729 | 1,729 |
| First row Hip Room | 1,666 | 1,666 |
| First row max. Leg Room | 1,069 | 1,069 |
| Interior Dimensions | ||
|---|---|---|
| E-350 Cutaway (in.) | E-450 Cutaway (in.) | |
| First row Head Room | 42 | 42 |
| First row Shoulder Room | 68.1 | 68.1 |
| First row Hip Room | 65.6 | 65.6 |
| First row max. Leg Room | 42.1 | 42.1 |
Capacities
| E-350 Cutaway | E-450 Cutaway | |
|---|---|---|
| Seating capacity (std./opt.) | 2.1 | 2.1 |
| Fuel capacity (std./opt.) | 151 litres / 208 litres | 151 litres / 208 litres |
| E-350 Cutaway/ | E-450 Cutaway | |
|---|---|---|
| Seating capacity (std./opt.) | 2,1 | 2,1 |
| Fuel capacity (std./opt.) | 40 gallon / 55 gallon | 40 gallon / 55 gallon |
Engine
| Engine type | 7.3L V8 Gas Engine | 7.3L V8 Gas Engine |
|---|---|---|
| Engine electronics | Bosch Multicore MG1CS019 | Bosch Multicore MG1CS019 |
| Displacement | 445 CID | 445 CID |
| Horsepower (SAE net@rpm) | 325@3,800 | 325@3,800 |
| Torque (lb.-ft. @rpm) | 450@3,800 | 450@3,800 |
| Compression ratio | 10.5:1 | 10.5:1 |
| Bore x stroke (in.) | 4.22 x 3.97 | 4.22 x 3.97 |
| Main bearings | 5 Main Bearings | 5 Main Bearings |
| Valvetrain | OHV / 2 Valves Per Cylinder | OHV / 2 Valves Per Cylinder |
| Valve lifters | Hydraulic Roller Lifters | Hydraulic Roller Lifters |
| Fuel delivery | Port Fuel Injection | Port Fuel Injection |
| Electronic throttle control (ETC) | Std. | Std. |
| Engine oil cooler | Std. | Std. |
| Exhaust | Cast Stainless Steel (LH & RH) | Cast Stainless Steel (LH & RH) |
| Transmission type | 6-speed automatic transmission with overdrive and Tow Haul | 6-speed automatic transmission with overdrive and Tow Haul |
| Engine block material | Cast Iron | Cast Iron |
| Cylinder head material | Aluminum | Aluminum |
| Engine type | 7.3L V8 Gas Engine | 7.3L V8 Gas Engine |
|---|---|---|
| Engine electronics | Bosch Multicore MG1CS019 | Bosch Multicore MG1CS019 |
| Displacement | 445 CID | 445 CID |
| Horsepower (SAE net@rpm) | 325@3,750 | 325@3,750 |
| Torque (lb.-ft. @rpm) | 450@3,750 | 450@3,750 |
| Compression ratio | 10.5:1 | 10.5:1 |
| Bore x stroke (in.) | 4.22 x 3.97 | 4.22 x 3.97 |
| Main bearings | 5 Main Bearings | 5 Main Bearings |
| Valvetrain | OHV / 2 Valves Per Cylinder | OHV / 2 Valves Per Cylinder |
| Valve lifters | Hydraulic Roller Lifters | Hydraulic Roller Lifters |
| Fuel delivery | Port Fuel Injection | Port Fuel Injection |
| Electronic throttle control (ETC) | Std. | Std. |
| Engine oil cooler | Std. | Std. |
| Exhaust | Cast Stainless Steel (LH & RH) | Cast Stainless Steel (LH & RH) |
| Transmission type | 6-speed automatic transmission with overdrive and Tow Haul | 6-speed automatic transmission with overdrive and Tow Haul |
| Engine block material | Cast Iron | Cast Iron |
| Cylinder head material | Aluminum | Aluminum |
Chassis
| Front suspension | Twin I-beam IFS with computer-selected coil springs and stabilizer bar |
| Rear suspension | Multileaf 2-stage leaf springs/solid axle and rear stabilizer bar (DRW only) |
| Front and rear shocks | Heavy-duty gas-pressurized |
| Brakes | Power 4-wheel disc anti-lock |
| Steering | Recirculating ball, power assisted |
| Front suspension | Twin I-beam IFS with computer-selected coil springs and stabilizer bar |
| Rear suspension | Multileaf 2-stage leaf springs/solid axle and rear stabilizer bar (DRW only) |
| Front and rear shocks | Heavy-duty gas-pressurized |
| Brakes | Power 4-wheel disc anti-lock |
| Steering | Recirculating ball, power assisted |
Payload Package Selector
| CUTAWAY | Engine | GCWR (kg) | GVWR (kg) | Payload (kg) |
|---|---|---|---|---|
| E-350 (SRW) 138" / 3,505 (mm) Wheelbase | 7.3L Premium | 5,897 | 4,559 | 2,313 |
| E-350 (DRW) 138" / 3,505 (mm) Wheelbase | 7.3L Premium | 5,897/7,711 | 5,216 | 2,844 |
| E-350 (SRW) 158" / 4,013 (mm) Wheelbase | 7.3L Premium | 5,897 | 4,559 | 2,282 |
| E-350 (DRW) 158" / 4,013 (mm) Wheelbase | 7.3L Premium | 5,897/7,711 | 5,216 | 2,817 |
| E-350 (DRW) 176" / 4,470 (mm) Wheelbase | 7.3L Premium | 5,897/7,711 | 5,670 | 3,266 |
| E-450 (DRW) 158" / 4,013 (mm) Wheelbase | 7.3L Premium | 8,165 | 6,350 | 3,846 |
| E-450 (DRW) 176" / 4,470 (mm) Wheelbase | 7.3L Premium | 8,165 | 6,350 | 3,846 |
| CUTAWAY | Engine | GCWR (lbs.) | GVWR (lbs.) | Payload (lbs.) |
|---|---|---|---|---|
| E-350 (SRW) 138" / 3,505 (mm) Wheelbase | 7.3L Premium | 13,000 | 10,050 | 5,100 |
| E-350 (DRW) 138" / 3,505 (mm) Wheelbase | 7.3L Premium | 13,000/17,000 | 11,500 | 6,270 |
| E-350 (SRW) 158" / 4,013 (mm) Wheelbase | 7.3L Premium | 13,000 | 10,050 | 5,030 |
| E-350 (DRW) 158" / 4,013 (mm) Wheelbase | 7.3L Premium | 13,000/17,000 | 11,500 | 6,210 |
| E-350 (DRW) 176" / 4,470 (mm) Wheelbase | 7.3L Premium | 13,000/17,000 | 12,500 | 7,200 |
| E-450 (DRW) 158" / 4,013 (mm) Wheelbase | 7.3L Premium | 18,000 | 14,000 | 8,480 |
| E-450 (DRW) 176" / 4,470 (mm) Wheelbase | 7.3L Premium | 18,000 | 14,000 | 8,480 |
Highlights
| Engine Type | 7.3L V8 Gas Engine |
|---|---|
| Fuel Capacity | 151/208 litres |
| Engine Type | 7.3L V8 Gas Engine |
|---|---|
| Fuel Capacity | 40/55 gallon |
