2025 Super Duty^®

F-350^® LARIAT^®

View Local Inventory

Build & Price

View Local Inventory

Build & Price

2025 Ford Super Duty® F-350 Lariat Payment Estimator details
View all offers

¹

View all offers
Seating for

6

Seating for

Key Features

Close-up of the trailer tow mirrors highlighting the Blind Spot Information System icon with a semi-truck in the reflection

BLIS^® (Blind Spot Information System) with Trailer Coverage

When pulling a conventional trailer, the available BLIS with Trailer Coverage can help ease the anxiety by giving you an alert when a vehicle is in your blind spots, but also when one is alongside your trailer.¹⁰

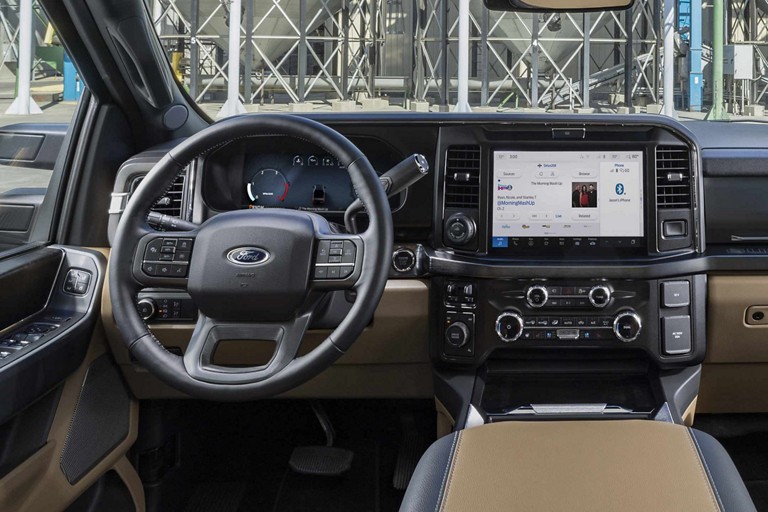

2025 Ford Super Duty® interior view showing the 12-inch LCD Touchscreen

SYNC^® 4 With 12" LCD Touchscreen

SYNC^® 4⁷⁶ Technology gives you complete control of the innovative tech in your Super Duty^® truck, running on a large 12" touchscreen. Available Enhanced Voice Recognition, cloud-based connectivity and so much more bring you a seamless and personalized driving experience. Plus, you connect wirelessly with Apple CarPlay^®¹¹¹ and Android Auto^™ compatibility.

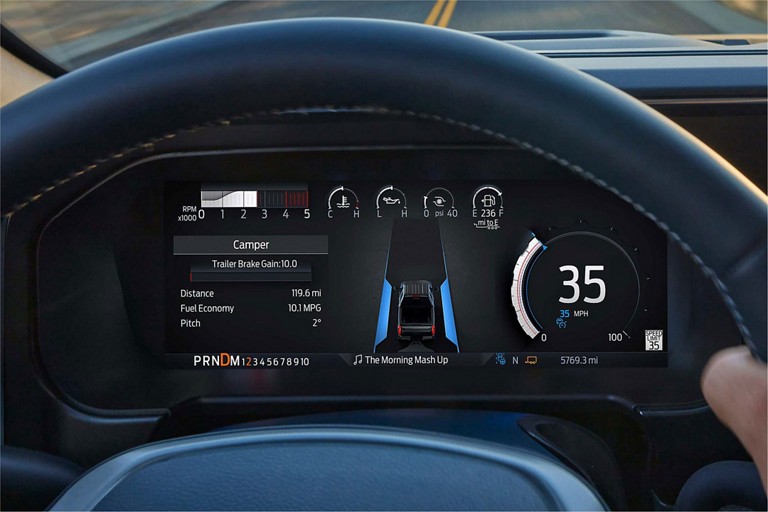

Close-up of the digital instrument cluster

12" Customizable Digital Instrument Cluster

Customize the digital cluster display to fit your driving and trailering needs. Vivid high-res graphics offer a clean modern look.

Exterior Features

Appearance

Standard

Bumpers, Front and Rear – Chrome Steel with Front Grained Top Cover and Black Lower Air Dam
6" Bright Anodized Tubular Running Boards (Standard on Lariat F-350 DRW and F-450)
Door Handles – Body Colour
LED Fog Lamps
Grille – Chrome, Two Bar with Chrome Inserts
High AirFlow Grille DRW (6.7 Diesel Only)
Headlamps – Quad, Dual-Beam Halogen
Headlamps – LED Reflector
Lights – LED Box Lighting
PowerScope^® Trailer Tow, Power Heated Glass/Power Telescoping/Power Fold-away/LED Spot lamps
Mirrors with Memory
Tailgate – Removable with Lock
Tailgate – Tailgate Lock, Power
Tailgate – Remote Tailgate Release
Tie-Down Hooks – Pickup Box
Tow Hooks – (2) Front, Black
Wheels – 18" Bright Machined Cast Aluminum (SRW)
Wheels – 18" Machined and Painted Aluminum
Wheels – 20" Dark Carbonized Grey
Wheels – 17" Polished Aluminum Machined (DRW)
Wheels – 20" Chrome PVD Wheels – Chrome Package

Optional

Bumpers, Front and Rear – Body Colour
Extended-Length 6" Angular Chrome Running Boards
Platform Black Molded-In-Colour Running Boards
Off-Road Running Boards – Textured Matte Finish
Power Deployable Running Boards
Door Handles – Body Colour with Chrome Pull Handles
Grille – Ebony Black Painted
LED Roof Clearance Lamps
Tailgate Step with Tailgate Assist^™ (Step and Handle)
Wheels – 20" Bright Machined Cast Aluminum (SRW 4x4)
Wheels – 20" High Gloss Black Premium Aluminum Wheel
Trailer Reverse Guidance
Aluminum Crossbed Toolbox by Weather Guard Matte Black
Aluminum Crossbed Toolbox by Weather Guard Bright

Protection

Optional

Bed Step
12,000 lbs. Ford Performance Winch by Warn
Tough Bed^® Spray-In Bedliner
Drop-in Bedliner
Skid Plates
Wheellip Moulding – Front and Rear
Wheel Well Liners – Front and Rear (SRW)
Wheel Well Liners – Front DRW
Wheel Well Liners – Rear SRW Only
Splash Guards (SRW)
Tonneau Pickup Box Cover – Retractable Folding
Tonneau Pickup Box Cover – Hard Folding
Tonneau Pickup Box Cover – Soft Folding
Customer-Placed Trailer Camera
Individual Trailer TPMS/Customer-Placed Trailer Camera

Windows & Glass

Standard

Glass – Rear, Privacy
Window - Rear, Defrost Fixed and Privacy Glass

Optional

Window – Rear, Power Sliding with Privacy Glass (fleet Only XL, Supercab and Crew Cab Only)

Exterior

Optional

Onboard Scales & Smart Hitch

Interior Features

Climate

Standard

Air Conditioning – Dual-Zone Electronic Automatic Temperature Control
Rapid-Heat Supplemental Cab Heater (Diesel)

Comfort and Convenience

Standard

Pedals – Power Adjustable with Memory
Cruise Control
Dome Lamp – Door-Activated Instrument Panel Switch Operated with Delay
Floor Covering – Colour-Coordinated Carpet
Grab Handles – Driver and Front Passenger and Roof Ride Handles; Front Passenger
Headliner – Colour-Coordinated Cloth
Instrumentation with Tachometer and Message Centre Including Odometer, Trip Odometer, Distance-To-Empty, Average Fuel Efficiency, Engine Hour Metre and Warning Messages
Instrument Panel – 12" LCD Productivity Screen
Map Lights – Dual
Powerpoint – Two Right-Hand Instrument Panel
Powerpoint, One Lower Instrument Panel 1 Bottom Rear of 20% Seat SuperCab/Crew Cab
Powerpoint – Two in Rear Side of Flow-Through Console
Powerpoint – 110-Volt/400-Watt – Dash Mounted
Powerpoint – 110-Volt/400-Watt Mounted in Rear Side of Flow-Through Console
BLIS^® (Blind Spot Monitoring System) with Cross-traffic Alert and Trailer Coverage
Automatic High Beam Headlamps
Pre-Collision Assist with Automatic Emergency Braking (AEB)
Rearview Mirror – Electrochromic Self-Dimming
Reverse Sensing System
Remote Start System (Fleet only on XL)
Steering Wheel – Audio Controls
Steering Wheel Wrapped Heat and Audio Controls
Steering Wheel – Heated
Glove Box
Visors with Driver – and Passenger-Side Illuminated, Covered Mirrors
Tilt/Telescoping Steering Wheel
Universal Garage Door Opener
Windshield Wipers – Interval Control
Rain-Sensing Windshield Wipers
Lockable Under-Seat Storage Box

Optional

Twin Panel Moonroof – Power (Crew Cab)
Floor Covering – Black Vinyl
Floor Mats—All-weather
Powerpoint – Pro Power Onboard – 2.0 Kw
Pro Trailer Hitch Assist
Pro Trailer Backup Assist
360-Degree Camera System (Incl. LED Centre High-Mounted Stop Lamp (CHMSL)
Adaptive Cruise Control
Lane Departure Warning
Wireless Charging Pad (40/Console/40 on LARIAT)
Vehicle Integration System 2.0
Storage – Safe Deposit - Console Lock Box
Upfitter Switches
Lane-Keeping Alert

Entertainment Systems

Standard

FordPass Connect^™ 5G Wi-Fi Modem
Audio – B&O^® Sound System by Bang & Olufsen^® (8 Speakers Incl. Subwoofer)
SiriusXM^® Radio with 360L
SYNC^® 4 with 12" LCD Capacitive Touchscreen
Connected Navigation (1-year subscription included)

Optional

B&O^® Unleashed Sound System by Bang & Olufsen^® with HD Radio^™ (14 Speakers Including Subwoofer)

Seating

Standard

Seats – Front, Premium Leather-Trimmed 40/20/40 Split Bench
Seats – Front, Power 2-Way Lumbar Support, Driver Seat
Seats – Front, 8-Way Driver and 8-Way Passenger Power with Memory
Seats – Front, Memory, Easy Entry/Exit Feature
Seats – Rear, Premium Vinyl, 60/40 Fold-Up Bench Seat (SuperCab)
Seats – Rear, 60/40 Bench w/Flip-Up/Fold-Down, w/Under-Seat Partitioned Lockable Storage, Two Outboard Head Restraints and A Centre Head Restraint, Dual Integrated Cupholders in Armrest (Crew Cab)
Seats – Front, Heated/Ventilated, Driver and Passenger
Seats – Front, Memory, Driver Side
Seats – Rear, Heated (Crew Cab) with Captains Chairs
Seats - ActiveX seating material Black Onyx Leather-Trimmed Seating Surfaces

Optional

Seats – Front, Leather-Trimmed 40/Console/40 Captain’s Chairs
Seats - ActiveX seating material Baja Leather-Trimmed Seating Surfaces
Interior Work Surface
Max Recline Seats

Packages

Standard

Ford Security Package 1-year included with activation
360-Degree Camera Package

Optional

LARIAT Ultimate Package (Crew Cab)
Chrome Package
FX4 Off-Road Package
Snow Plow Prep Package
Camper Package (N/A Platinum SRW, TREMOR^™)
Snow Plow Prep/Camper Package (N/A Platinum)
Heavy Service Front Suspension Package
5th-Wheel/Gooseneck Trailer Hitch Prep Package
Black Appearance Package
TREMOR^™ Off-Road Package
Ford PRO Upfit Integration System
Ford Telematics^™

Power and Handling

Handling

Standard

Trailer Sway Control
Engine Block Heater (Optional on Gas Engine, Standard on Diesel Engines)
109 Litre Fuel Tank (Diesel Engine) – 142" & 148" Wheelbase
128 Litre Fuel Tank (Diesel Engine) – 160" & 164" Wheelbase
130 Litre Fuel Tank (Gas Engine) NA 176" Wheelbase
183 Litre Fuel Tank (Gas Engine) – 176" Wheelbase
Shock Absorbers – Heavy-Duty, Gas
Stabilizer Bar – Front
Stationary Elevated Idle Control (SEIC)
Steering – Power
Trailer Hitch Receiver – 2.5" Built Ford Tough^® Trailer Hitch Receiver (F-250/F-350 SRW)
Trailer Hitch Receiver – 3" Built Ford Tough^® Trailer Hitch Receiver. F-350 Crew Cab DRW (6.7L High Output Diesel only w/ 4.10 Axle) and F-450 Crew Cab
181 Litre Fuel Tank (Diesel Engine) – 176" Wheelbase
360-Degree Camera
Alternator – Single, Heavy-Duty, 250 Amp (7.3L Gas Engine)
Alternator – Dual, Extra Heavy-Duty, 410 Amp (6.7L Diesel Engine)
Axle – Twin I-Beam Front Axle with Coil Spring Suspension – 4x2 (F-250, F-350)
Axle – Mono-Beam Front Axle with Coil Spring Suspension – 4x4 (F-250, F-350)
Brakes – Power 4-Wheel Disc with Anti-Lock Brake System (ABS)
AdvanceTrac^® with Roll Stability Control^® (RSC)
Trailer Brake Controller
Electronic Shift-On-the-Fly (ESOF) 4-Wheel-Drive System (4x4 models only)

Optional

Live Drive Power Takeoff (PTO)
Gooseneck Hitch Kit (SRW)
5th Wheel Hitch Kit (SRW)
5th Wheel Hitch Kit (DRW)
Gooseneck Dual Hitch Kit (DRW)
Alternator – Single, Extra Heavy-Duty, 250 Amp (Gas Engine Only)
Alternator – Dual, Extra Heavy-Duty, 410 Amp (7.3L Gas Engine)

Power

Standard

6.8L 2 Valve Gas DEVCT NA PFI V8 Engine (F-250/350)
Ten-Speed Transmission Automatic – with Selectable Drive Modes

Optional

6.7L Power Stroke^® V8 Turbo Diesel Engine
6.7L HO Power Stroke^® V8 Turbo Diesel Engine
7.3L 2V DEVCT NA PFI V8 Gas Engine
Operator Commanded Regeneration (OCR) – 6.7L Power Stroke^® Diesel Only

Wheels & Tires

Standard

LT245/75Rx17E BSW A/S PLUS (5-SRW on XL only, 7-DRW on F350 only) fleet only XLT SRW
LT275/70Rx18E BSW A/T (4), 4x4 (spare tire – A/T) (SRW; XL requires F-350 SRW) TDX
Tire - Spare, Wheel and Frame-Mounted Carrier
Jack - 4-ton, Hydraulic (DRW)
Jack - 3-ton, Hydraulic (SRW)

Optional

LT245/75Rx17E BSW A/T (5-SRW/7-DRW) TBM
LT275/65Rx20E Premium BSW A/T, 4x4 – (4) (NA w/471 Camper Pkg., 47B Snow Plow Prep Camper Package; NA w/142" WB)
285/75Rx18E BSW A/T 35" Off-Road Tire TFW

Safety

Standard

Rear View Camera - Tailgate mounted
Tire Pressure Monitoring System (excludes spare)
Airbags — Front Seat with Passenger Side Deactivation Switch (Regular Cab and SuperCab only)
Airbags — Front Seat Side
Airbags — Safety Canopy^® System with Side Curtain Airbags
Belt-Minder^®, Chime and Flashing Warning Light on Instrument Cluster if Belts not Buckled
Child Tethers (Regular Cab, Front Passenger and All Rear Seating Positions)
Seat Belts – Colour Coordinated with Height Adjustment (Front Outboard Seating Positions Only)
SOS Post Crash Alert System

Optional

Centre High Mounted Stop Lamp Camera (CHMSL) LED

Security

Standard

Remote Keyless Entry
SecuriLock^® Anti-Passive Anti-Theft Systems PATS Engine Immobilizer

Specifications

Highlights

Highlights
Fuel Capacity	109 Litre
	128 Litre
	182 Litre
Drive Type	4x2
	4x4
Available Engines	6.8L 2 Valve Gas DEVCT NA PFI V8 Engine
	7.3L 2V Gas DEVCT PFI NA V8 Engine
	6.7L Power Stroke^® V8 Turbo Diesel Engine
	6.7L HO Power Stroke^® V8 Turbo Diesel Engine
	HP = 405 @ 5,000 rpm.\| TQ = 445 @ 4,000 rpm. (6.8L Gas V8)
	HP = 430 @ 5,500 rpm. \| TQ = 485 @ 4,000 rpm. (7.3L Gas V8)
	HP = 475 @ 2,600 rpm. \| TQ = 1,050 @ 1,600 rpm. (6.7L Power Stroke^® Turbo Diesel)
	HP = 500 @ 2,600 rpm. \| TQ = 1,200 @ 1,600 rpm. (6.7L HO Power Stroke^® Turbo Diesel)
Transmission	TorqShift^® G 10-speed SelectShift Automatic^®
	TorqShift^® 10-speed SelectShift Automatic^® with Selectable Drive Modes
Wheelbase	141.4" (Regular Cab)
	147.8" (SWB SuperCab); 164.1" (LWB SuperCab)
	159.7" (SWB Crew Cab); 175.9" (LWB Crew Cab)
Warranty	Bumper to Bumper: 3 years / 60,000 km
	Powertrain: 5 years / 100,000 km; Diesel: 5 years / 160,000 km
	Safety Restraint System: 5 years / 100,000 km
	Corrosion (Perforation only): 5 years / Unlimited miles
	Roadside Assistance Program: 5 years / 100,000 km

Highlights
Fuel Capacity	29 gallons
	34 gallons
	48 gallons
Drive Type	4x2
	4x4
Available Engines	6.8L 2 Valve Gas DEVCT NA PFI V8 Engine
	7.3L 2V Gas DEVCT PFI NA V8 Engine
	6.7L Power Stroke^® V8 Turbo Diesel Engine
	6.7L HO Power Stroke^® V8 Turbo Diesel Engine
	HP = 405 @ 5,000 rpm.\| TQ = 445 @ 4,000 rpm. (6.8L Gas V8)
	HP = 430 @ 5,500 rpm. \| TQ = 485 @ 4,000 rpm. (7.3L Gas V8)
	HP = 475 @ 2,600 rpm. \| TQ = 1,050 @ 1,600 rpm. (6.7L Power Stroke^® Turbo Diesel)
	HP = 500 @ 2,600 rpm. \| TQ = 1,200 @ 1,600 rpm. (6.7L HO Power Stroke^® Turbo Diesel)
Transmission	TorqShift^® G 10-speed SelectShift Automatic^®
	TorqShift^® 10-speed SelectShift Automatic^® with Selectable Drive Modes
Wheelbase	141.4" (Regular Cab)
	147.8" (SWB SuperCab); 164.1" (LWB SuperCab)
	159.7" (SWB Crew Cab); 175.9" (LWB Crew Cab)
Warranty	Bumper to Bumper: 3 years / 36,000 miles
	Powertrain: 5 years / 60,000 miles; Diesel: 5 years / 100,000 miles
	Safety Restraint System: 5 years / 60,000 miles
	Corrosion (Perforation only): 5 years / Unlimited miles
	Roadside Assistance Program: 5 years / 60,000 miles

Exterior

Exterior Dimensions
	Regular Cab	Regular Cab	SuperCab	SuperCab	Crew Cab	Crew Cab	Crew Cab	Crew Cab
SWB = short wheelbase (6 3/4" cargo box).	LWB	LWB	LWB	LWB	SWB	SWB	LWB	LWB
LWB = long wheelbase (8" cargo box).	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4
	mm	mm	mm	mm	mm	mm	mm	mm
Wheelbase	3,592	3,594	4,168	4,168	4,056	4,056	4,468	4,468
Length - overall	5,888	5,888	6,462	6,462	6,351	6,351	6,762	6,762
Height - F-250 SRW (w/o options)	2,005	2,068	2,009	2,070	2,013	2,073	2,007	2,068
Height - F-350 SRW (w/o options)	2,002	2,065	2,007	2,065	2,012	2,068	2,004	2,062
Height - F-350 DRW (w/o options)	2,017	2,065	2,009	2,068	-	-	2,019	2,070
Height - F-450 DRW (w/o options)	2,083	2,083	-	-	-	-	2,086	2,085
Width - SRW w/o mirrors	2,031	2,031	2,031	2,031	2,031	2,031	2,031	2,031
Width - DRW w/o mirrors	2,438	2,438	2,438	2,438	-	-	2,438	2,438
Width - SRW/DRW with standard mirrors	2,689	2,689	2,689	2,689	2,689	2,689	2,689	2,689
Track - front - F-250 SRW	1,766	1,765	1,765	1,765	1,765	1,765	1,765	1,765
Track - front - F-350 SRW	1,766	1,765	1,765	1,765	1,765	1,765	1,765	1,765
Track - front - F-350 DRW	1,766	1,765	1,765	1,765	1,765	1,765	1,765	1,765
Track - front - F-450 DRW	1,956	1,956	-	-	-	-	1,901	1,901
Track - rear - F-250 SRW	1,706	1,706	1,706	1,706	1,706	1,706	1,706	1,706
Track - rear - F-350 SRW	1,706	1,706	1,706	1,706	1,706	1,706	1,706	1,706
Track - rear - F-350 DRW	1,880	1,880	1,880	1,880	-	-	1,880	1,880
Track - rear - F-450 DRW	1,880	1,880	-	-	-	-	1,880	1,880
Minimum running ground clearance - F-250 SRW	246	239	259	246	251	234	259	241
Minimum running ground clearance - F-350 SRW	246	236	259	269	257	231	259	239
Minimum running ground clearance - F-350 DRW	251	234	259	239	-	-	259	249
Minimum running ground clearance - F-450 DRW	218	218	-	3,592	-	-	262	262
Overhang - front	971	973	971	973	971	973	971	973
Overhang - rear	1,326	1,270	1,326	1,270	1,326	1,270	1,326	1,270
Angle of departure - F-250 SRW	19.7	21.3	18.7	20.8	19.3	21.1	18.8	20.8
Angle of departure - F-350 SRW	19.4	21.1	18.5	20.6	19	20.9	18.7	20.6
Angle of departure - F-350 DRW	20.7	21.5	18.7	20.9	-	-	20	20.9
Angle of departure - F-450 DRW	21.6	21.5	-	-	-	-	20.8	20.8
Ramp breakover angle - F-250 SRW	20.3	24.7	20.7	21.9	18.5	21.9	17.3	20.5
Ramp breakover angle - F-350 SRW	19	21.1	18.3	21.7	18.4	21.7	17.2	20.3
Ramp breakover angle - F-350 DRW	20.7	21.5	22.7	21.8	-	-	17.4	20.7
Ramp breakover angle - F-450 DRW	25.4	25.4	-	-	-	-	20.7	20.7
Angle of approach - F-250 SRW	16.7	15.8	21.8	27.6	21.2	26.7	21.7	27.3
Angle of approach - F-350 SRW	16.6	15.7	17.4	16.2	21.5	26.6	21.8	27.2
Angle of approach - F-350 DRW	20.7	21.5	17.8	17.4	-	-	21.7	27.7
Angle of approach - F-450 DRW	18.5	18.5	-	-	-	-	26.9	26.9
Open tailgate to Ground - F-250 SRW	927	956	904	941	897	968	893	935
Open tailgate to Ground - F-350 SRW	922	949	898	936	896	937	889	930
Open tailgate to Ground - F-350 DRW	947	958	904	942	-	-	919	937
Open tailgate to Ground - F-450 DRW	972	968	-	-	-	-	935	935
	KG	KG	KG	KG	KG	KG	KG	KG
Base Curb Weight	Regular Cab	Regular Cab	Super Cab	Super Cab	Crew Cab	Crew Cab	Crew Cab	Crew Cab
	4X2	4X4	LWB 4X2	LWB 4X4	SWB - 4X2	SWB - 4X4	LWB 4X2	LWB 4X4
Base Curb Weight - F-250 SRW 6.8L	2,584	2,789	2,769	2,950	2,740	2,901	2,841	3,039
Base Curb Weight - F-250 SRW 6.7L	2,986	3,173	3,175	3,350	3,158	3,325	3,270	3,468
Base Curb Weight - F-250 SRW 7.3L	2,631	2,827	2,806	2,988	2,786	2,939	2,879	3,077
Base Curb Weight - F-250 SRW 6.7L HO	2,993	3,180	3,181	3,357	3,165	3,332	3,277	3,475
Base Curb Weight - F-350 SRW (17" Wheels) 6.8L	-	2,821	2,789	3,006	2,808	2,997	2,911	3,049
Base Curb Weight - F-350 SRW (17" Wheels) 6.7L	2,972	3,162	3,128	3,344	3,151	3,344	3,259	3,470
Base Curb Weight - F-350 SRW (17" Wheels) 7.3L	-	2,918	2,885	3,103	2,905	3,094	3,007	3,146
Base Curb Weight - F-350 SRW (17" Wheels) 6.7L HO	2,979	3,169	3,136	3,351	3,158	3,351	3,265	3,476
Base Curb Weight - F-350 SRW (18" Wheels A/S) 6.8L	2,655	2,847	2,815	3,009	2,834	3,023	2,937	3,075
Base Curb Weight - F-350 SRW (18" Wheels A/S) 6.7L	2,998	3,188	3,155	3,346	3,177	3,370	3,284	3,507
Base Curb Weight - F-350 SRW (18" Wheels A/S) 7.3L	2,752	2,944	2,911	3,105	2,931	3,120	3,033	3,190
Base Curb Weight - F-350 SRW (18" Wheels A/S) 6.7L HO	3,005	3,195	3,162	3,353	3,184	3,377	3,291	3,351
Base Curb Weight - F-350 DRW 6.8L	2,815	3,015	3,024	3,211	-	-	3,123	3,353
Base Curb Weight - F-350 DRW 6.7L	3,172	3,366	3,373	3,562	-	-	3,457	3,689
Base Curb Weight - F-350 DRW 7.3L	2,864	3,059	3,067	3,255	-	-	3,167	3,351
Base Curb Weight - F-350 DRW 6.7L HO	3,179	3,373	3,380	3,569	-	-	3,464	-
Base Curb Weight- F-450 DRW 6.7L	3,473	3,653	-	-	-	-	3,770	3,895
Base Curb Weight- F-450 DRW 6.7L HO	3,480	3,660	-	-	-	-	3,777	-
Cargo Box Dimensions
	Regular Cab	Regular Cab	SuperCab	SuperCab	SuperCab	SuperCab	Crew Cab	Crew Cab	Crew Cab	Crew Cab
	LWB	LWB	SWB	SWB	LWB	LWB	SWB	SWB	LWB	LWB
	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4
	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
Length at floor	2,492	2,492	2,081	2,081	2,492	2,492	2,081	2,081	2,492	2,492
Height	535	535	535	535	535	535	535	535	535	535
Width at floor (maximum)	1,698	1,698	1,698	1,698	1,698	1,698	1,698	1,698	1,698	1,698
Width between wheelhouse	1,282	1,282	1,282	1,282	1,282	1,282	1,282	1,282	1,282	1,282
Volume (cu. ft./L)	2,223.9 L	2,223.9 L	1,850.6 L	1,850.6 L	2,223.9 L	2,223.9 L	1,850.6 L	1,850.6 L	2,223.9 L	2,223.9 L

Exterior Dimensions
	Regular Cab	Regular Cab	SuperCab	SuperCab	Crew Cab	Crew Cab	Crew Cab	Crew Cab
SWB = short wheelbase (6 3/4' cargo box).	LWB	LWB	LWB	LWB	SWB	SWB	LWB	LWB
LWB = long wheelbase (8' cargo box).	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4
	in.	in.	in.	in.	in.	in.	in.	in.
Wheelbase	141.4	141.5	164.1	164.1	159.7	159.7	175.9	175.9
Length - overall	231.8	231.8	254.4	254.4	250.0	250.0	266.2	266.2
Height - F-250 SRW (w/o options)	78.9	81.4	79.1	81.5	79.3	81.6	79.0	81.4
Height - F-350 SRW (w/o options)	78.8	81.3	79.0	81.3	79.2	81.4	78.9	81.2
Height - F-350 DRW (w/o options)	79.4	81.3	79.1	81.4	-	-	79.5	81.5
Height - F-450 DRW (w/o options)	82.0	82.0	-	-	-	-	81.3	81.3
Width - SRW w/o mirrors	80	80	80	80	80	80	80	80
Width - DRW w/o mirrors	96	96	96	96	-	-	96	96
Width - SRW/DRW with standard mirrors	105.9	105.9	105.9	105.9	105.9	105.9	105.9	105.9
Track - front - F-250 SRW	69.5	69.5	69.5	69.5	69.5	69.5	69.5	69.5
Track - front - F-350 SRW	69.5	69.5	69.5	69.5	69.5	69.5	69.5	69.5
Track - front - F-350 DRW	69.5	69.5	69.5	69.5	69.5	69.5	69.5	69.5
Track - front - F-450 DRW	77	77	-	-	-	-	74.8	74.8
Track - rear - F-250 SRW	67.2	67.2	67.2	67.2	67.2	67.2	67.2	67.2
Track - rear - F-350 SRW	67.2	67.2	67.2	67.2	67.2	67.2	67.2	67.2
Track - rear - F-350 DRW	74	74	74	74	-	-	74	74
Track - rear - F-450 DRW	74	74	-	-	-	-	74	74
Minimum running ground clearance - F-250 SRW	9.7	9.4	10.2	9.7	9.9	9.2	10.2	9.5
Minimum running ground clearance - F-350 SRW	9.7	9.3	10.2	10.6	10.1	9.1	10.2	9.4
Minimum running ground clearance - F-350 DRW	9.9	9.2	10.2	9.4	-	-	10.2	9.8
Minimum running ground clearance - F-450 DRW	8.6	8.6	-	-	-	-	10.3	10.3
Overhang - front	38.2	38.3	38.2	38.3	38.2	38.3	38.2	38.3
Overhang - rear	52.2	50.0	52.2	50.0	52.2	50.0	52.2	50
Angle of departure - F-250 SRW	19.7	21.3	18.7	20.8	19.3	21.1	18.8	20.8
Angle of departure - F-350 SRW	19.4	21.1	18.5	20.6	19	20.9	18.7	20.6
Angle of departure - F-350 DRW	20.7	21.5	18.7	20.9	-	-	20	20.9
Angle of departure - F-450 DRW	21.6	21.5	-	-	-	-	20.8	20.8
Ramp breakover angle - F-250 SRW	20.3	24.7	20.7	21.9	18.5	21.9	17.3	20.5
Ramp breakover angle - F-350 SRW	19	21.1	18.3	21.7	18.4	21.7	17.2	20.3
Ramp breakover angle - F-350 DRW	20.7	21.5	22.7	21.8	-	-	17.4	20.7
Ramp breakover angle - F-450 DRW	25.4	25.4	-	-	-	-	20.7	20.7
Angle of approach - F-250 SRW	16.7	15.8	21.8	27.6	21.2	26.7	21.7	27.3
Angle of approach - F-350 SRW	16.6	15.7	17.4	16.2	21.5	26.6	21.8	27.2
Angle of approach - F-350 DRW	20.7	21.5	17.8	17.4	-	-	21.7	27.7
Angle of approach - F-450 DRW	18.5	18.5	-	-	-	-	26.9	26.9
Open tailgate to Ground - F-250 SRW	36.5	37.6	35.6	37	35.3	38.1	35.2	36.8
Open tailgate to Ground - F-350 SRW	36.3	37.4	35.4	36.9	35.3	36.9	35	36.6
Open tailgate to Ground - F-350 DRW	37.3	37.7	35.6	37.1	-	-	36.2	36.9
Open tailgate to Ground - F-450 DRW	38.3	38.1	-	-	-	-	36.8	36.8
	LBS	LBS	LBS	LBS	LBS	LBS	LBS	LBS
Base Curb Weight	Regular Cab	Regular Cab	Super Cab	Super Cab	Crew Cab	Crew Cab	Crew Cab	Crew Cab
	4X2	4X4	LWB 4X2	LWB 4X4	SWB - 4X2	SWB - 4X4	LWB 4X2	LWB 4X4
Base Curb Weight - F-250 SRW 6.8L	5,697	6,148	6,104	6,504	6,041	6,396	6,264	6,699
Base Curb Weight - F-250 SRW 6.7L	6,583	6,996	6,999	7,386	6,963	7,331	7,210	7,645
Base Curb Weight - F-250 SRW 7.3L	5,801	6,232	6,187	6,587	6,142	6,480	6,348	6,783
Base Curb Weight - F-250 SRW 6.7L HO	6,598	7,011	7,014	7,401	6,978	7,346	7,225	7,660
Base Curb Weight - F-350 SRW (17" Wheels) 6.8L	-	6,220	6,148	6,628	6,191	6,608	6,417	6,722
Base Curb Weight - F-350 SRW (17" Wheels) 6.7L	6,553	6,972	6,897	7,372	6,947	7,372	7,184	7,649
Base Curb Weight - F-350 SRW (17" Wheels) 7.3L	-	6,433	6,361	6,841	6,405	6,821	6,630	6,936
Base Curb Weight - F-350 SRW (17" Wheels) 6.7L HO	6,568	6,987	6,913	7,388	6,962	7,387	7,199	7,664
Base Curb Weight - F-350 SRW (18" Wheels A/S) 6.8L	5,854	6,277	6,205	6,633	6,248	6,665	6,474	6,780
Base Curb Weight - F-350 SRW (18" Wheels A/S) 6.7L	6,610	7,029	6,955	7,377	7,004	7,429	7,241	7,732
Base Curb Weight - F-350 SRW (18" Wheels A/S) 7.3L	6,068	6,490	6,418	6,846	6,462	6,878	6,687	7,032
Base Curb Weight - F-350 SRW (18" Wheels A/S) 6.7L HO	6,625	7,044	6,971	7,393	7,019	7,444	7,256	7,388
Base Curb Weight - F-350 DRW 6.8L	6,206	6,647	6,666	7,080	-	-	6,886	7,392
Base Curb Weight - F-350 DRW 6.7L	6,992	7,421	7,436	7,852	-	-	7,622	8,133
Base Curb Weight - F-350 DRW 7.3L	6,314	6,743	6,762	7,176	-	-	6,982	7,388
Base Curb Weight - F-350 DRW 6.7L HO	7,008	7,436	7,451	7,868	-	-	7,637	-
Base Curb Weight- F-450 DRW 6.7L	7,657	8,053	-	-	-	-	8,312	8,587
Base Curb Weight- F-450 DRW 6.7L HO	7,673	8,068	-	-	-	-	8,327	-
Cargo Box Dimensions
	Regular Cab	Regular Cab	SuperCab	SuperCab	SuperCab	SuperCab	Crew Cab	Crew Cab	Crew Cab	Crew Cab
	LWB	LWB	SWB	SWB	LWB	LWB	SWB	SWB	LWB	LWB
	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4
	in.	in.	in.	in.	in.	in.	in.	in.	in.	in.
Length at floor	98.1	98.1	81.9	81.9	98.1	98.1	81.9	81.9	98.1	98.1
Height	21.1	21.1	21.1	21.1	21.1	21.1	21.1	21.1	21.1	21.1
Width at floor (maximum)	66.9	66.9	66.9	66.9	66.9	66.9	66.9	66.9	66.9	66.9
Width between wheelhouse	50.5	50.5	50.5	50.5	50.5	50.5	50.5	50.5	50.5	50.5
Volume (cu. ft./L)	78.5 cu. ft.	78.5 cu. ft.	65.4 cu. ft.	65.4 cu. ft.	78.5 cu. ft.	78.5 cu. ft.	65.4 cu. ft.	65.4 cu. ft.	78.5 cu. ft.	78.5 cu. ft.

Interior

Interior Dimensions
	Regular Cab	SuperCab	Crew Cab
Front	mm	mm	mm
Head room	1,036	1,036	1,036
Shoulder room	1,694	1,694	1,694
Hip room	1,588	1,588	1,588
Max leg room	1,115	1,115	1,115
Rear	mm	mm	mm
Head room	-	1,024	1,026
Shoulder room	-	1,671	1,674
Hip room	-	1,643	1,643
Leg room	-	851	1,107
Volumes	L	L	L
Passenger - total	1,643	2,954	3,350
Cargo - behind first row	277	770	1,356

Interior Dimensions
	Regular Cab	SuperCab	Crew Cab
Front	in.	in.	in.
Head room	40.8	40.8	40.8
Shoulder room	66.7	66.7	66.7
Hip room	62.5	62.5	62.5
Max leg room	43.9	43.9	43.9
Rear	in.	in.	in.
Head room	-	40.3	40.4
Shoulder room	-	65.8	65.9
Hip room	-	64.7	64.7
Leg room	-	33.5	43.6
Volumes	cu. ft.	cu. ft.	cu. ft.
Passenger - total	64.7	116.3	131.9
Cargo - behind first row	10.9	30.3	53.4

Capacities

Seating and Fuel Capacity	Regular Cab	SuperCab	Crew Cab	Crew Cab
	142" WB	164" WB	160" WB	176" WB
Maximum Seating	3	6	6	6
Fuel capacity
6.8L Gas	130 Litre	130 Litre	130 Litre	184 Litre
7.3L Gas	130 Litre	130 Litre	130 Litre	184 Litre
6.7L Diesel	109 Litre	128 Litre	128 Litre	181 Litre
6.7L HO Diesel	109 Litre	128 Litre	128 Litre	181 Litre

Capacities
Seating and Fuel Capacity	Regular Cab	SuperCab	Crew Cab	Crew Cab
	142" WB	164" WB	160" WB	176" WB
Maximum Seating	3	6	6	6
Fuel capacity
6.8L Gas	34.5 Gallon	34.5 Gallon	34.5 Gallon	34.5 Gallon
7.3L Gas	34.5 Gallon	34.5 Gallon	34.5 Gallon	48.5 Gallon
6.7L Diesel	29 Gallon	34 Gallon	34 Gallon	48 Gallon
6.7L HO Diesel	29 Gallon	34 Gallon	34 Gallon	48 Gallon

Engine

Engine Specifications
Name	7.3L 2V DEVCT NA PFI V8 Gas	6.8-liter V8	6.7L Power Stroke^® V8 Turbo Diesel	6.7L HO Power Stroke^® V8 Turbo Diesel
Configuration	90-degree V8, single in-block cams	90-degree V8, single in-block cams	90-degree diesel V8, single turbocharger, in-block cams and overhead valves	90-degree diesel V8, single turbocharger, in-block cams and overhead valves
Fuel injection/delivery	Sequential Electronic	Sequential Electronic	High-Pressure Common-Rail	High-Pressure Common-Rail
Engine control system	Electronic	Electronic	Electronic	Electronic
Induction system	Specially tuned - (n/a non turbo)	Specially tuned - (n/a non turbo)	Variable Geometry Turbocharger; with charge air cooler	Variable Geometry Turbocharger; with charge air cooler
Battery	12-volt; 750CCA 78-AH	12-volt; 750CCA 78-AH	Dual 12-volt 750CCA 68-AH AGM	Dual 12-volt 750CCA 68-AH AGM
Standard Alternator	160-amp (XL)	160-amp (XL)	410-amp Dual (All Trims)	410-amp Dual (All Trims)
	190-amp (XLT/Lariat)
Cooling system	Pressurized series flow	Pressurized series flow	Pressurized series flow	Pressurized series flow
Oil Life Monitor	Oil Life Monitor^®	Oil Life Monitor^®	Intelligent Oil Life Monitor^®	Intelligent Oil Life Monitor^®
Cylinders	8	8	8	8
Cylinder head	Aluminum	Aluminum	Aluminum	Aluminum
Block material	Cast Iron	Cast iron	Compacted graphite iron	Compacted graphite iron
Valve operation	Push rod/rocker arms	Roller rocker shaft	Push rod/rocker arms	Push rod/rocker arms
Camshaft drive	Silent chain	Silent chain	Gear	Gear
Bore	4.22" (107.2 mm)	4.22"	3.90"	3.90"
Stroke	3.98" (101 mm)	3.68"	4.25"	4.25"
Compression ratio	10.5:1	10.8:1	15.2:1	15.2:1
Horsepower/rpm.	430 @ 5,500	405 @ 5,000	475 @ 2,600	500 @ 2,600
Torque lb.-ft./rpm.	485 @ 4,000	445 @ 4,000	1,050 @ 1,600	1,200 @ 1,600
Recommended fuel	87 octane (Not e85 compatible)	87 octane (Not e85 compatible)	Ultra-low sulfur diesel/B20	Ultra-low sulfur diesel/B20
Transmission Specifications
Transmission Type	TorqShift^®-G ten-speed automatic w/ Selectable Drive Modes: Normal, Eco, Slippery Roads, Tow/Haul (6.8L Gas)
Case material	Aluminum
Power Takeoff	Live-drive access on driver side
Gear ratios	1st	4.696:1
	2nd	2.985:1
	3rd	2.146:1
	4th	1.769:1
	5th	1.520:1
	6th	1.275:1
	Reverse	-4.866:1
Transmission Type	TorqShift 10-speed SelectShift Automatic^®
Case material	Aluminum
Power Takeoff	Live-drive access on driver side
Gear ratios	First	4.615:1
	Second	2.919:1
	Third	2.132:1
	Fourth	1.773:1
	Fifth	1.519:1
	Sixth	1.277:1
	Seventh	1.1
	Eighth	0.851:1
	Ninth	0.687:1
	Tenth	0.632:1
	Reverse	-4.695:1

Engine Specifications
Name	7.3L 2V DEVCT NA PFI V8 Gas	6.8-liter V8	6.7L Power Stroke^® V8 Turbo Diesel	6.7L HO Power Stroke^® V8 Turbo Diesel
Configuration	90-degree V8, single in-block cams	90-degree V8, single in-block cams	90-degree diesel V8, single turbocharger, in-block cams and overhead valves	90-degree diesel V8, single turbocharger, in-block cams and overhead valves
Fuel injection/delivery	Sequential Electronic	Sequential Electronic	High-Pressure Common-Rail	High-Pressure Common-Rail
Engine control system	Electronic	Electronic	Electronic	Electronic
Induction system	Specially tuned - (n/a non turbo)	Specially tuned - (n/a non turbo)	Variable Geometry Turbocharger; with charge air cooler	Variable Geometry Turbocharger; with charge air cooler
Battery	12-volt; 750CCA 78-AH	12-volt; 750CCA 78-AH	Dual 12-volt 750CCA 68-AH AGM	Dual 12-volt 750CCA 68-AH AGM
Standard Alternator	160-amp (XL)	160-amp (XL)	410-amp Dual (All Trims)	410-amp Dual (All Trims)
	190-amp (XLT/Lariat)
Cooling system	Pressurized series flow	Pressurized series flow	Pressurized series flow	Pressurized series flow
Oil Life Monitor	Oil Life Monitor^®	Oil Life Monitor^®	Intelligent Oil Life Monitor^®	Intelligent Oil Life Monitor^®
Cylinders	8	8	8	8
Cylinder head	Aluminum	Aluminum	Aluminum	Aluminum
Block material	Cast Iron	Cast iron	Compacted graphite iron	Compacted graphite iron
Valve operation	Push rod/rocker arms	Roller rocker shaft	Push rod/rocker arms	Push rod/rocker arms
Camshaft drive	Silent chain	Silent chain	Gear	Gear
Bore	4.22" (107.2 mm)	4.22"	3.90"	3.90"
Stroke	3.98" (101 mm)	3.68"	4.25"	4.25"
Compression ratio	10.5:1	10.8:1	15.2:1	15.2:1
Horsepower/rpm.	430 @ 5,500	405 @ 5,000	475 @ 2,600	500 @ 2,600
Torque lb.-ft./rpm.	485 @ 4,000	445 @ 4,000	1,050 @ 1,600	1,200 @ 1,600
Recommended fuel	87 octane (Not e85 compatible)	87 octane (Not e85 compatible)	Ultra-low sulfur diesel/B20	Ultra-low sulfur diesel/B20
Transmission Specifications
Transmission Type	TorqShift^®-G ten-speed automatic w/ Selectable Drive Modes: Normal, Eco, Slippery Roads, Tow/Haul (6.8L Gas)
Case material	Aluminum
Power Takeoff	Live-drive access on driver side
Gear ratios	1st	4.696:1
	2nd	2.985:1
	3rd	2.146:1
	4th	1.769:1
	5th	1.520:1
	6th	1.275:1
	Reverse	-4.866:1
Transmission Type	TorqShift 10-speed SelectShift Automatic^®
Case material	Aluminum
Power Takeoff	Live-drive access on driver side
Gear ratios	First	4.615:1
	Second	2.919:1
	Third	2.132:1
	Fourth	1.773:1
	Fifth	1.519:1
	Sixth	1.277:1
	Seventh	1.1
	Eighth	0.851:1
	Ninth	0.687:1
	Tenth	0.632:1
	Reverse	-4.695:1

Chassis

Chassis
FRONT SUSPENSION	kg
Type	Independent twin I-Beam (narrow front track) with coil springs, shock absorbers, stabilizer bar (F-250/F-350 4x2)
	Mono beam (narrow front track) with coil springs, shock absorbers, stabilizer bar (F-250/F-350 4x4)
	Mono beam (wide front track) with coil springs, shock absorbers, stabilizer bar (F-450)
Max. Front GAWR	kg
	2,268 kg. (F-250 4x2)
	2,540 kg. (F-250 4x4)
	2,268 kg. (F-350 SRW 4x2)
	2,540 kg. (F-350 SRW 4x4)
	2,404 kg. (F-350 DRW 4x4)
	2,540 kg. (F-350 DRW 4x4)
	2,540 kg. (F-350 DRW 4x4)
	2,404 kg. (F-450 DRW 4x4)
Springs	Coil
Shock absorbers	Heavy-duty gas
Stabilizer bar	Standard
REAR SUSPENSION
Type	Solid axle
Max. Rear GAWR	2,876 kg. (F-250 4x2)
	2,876 kg. (F-250 4x4)
	3,279 kg. (F-350 SRW 4x2)
	3,075 kg. (F-350 SRW 4x4)
	4,672 kg. (F-350 DRW 4x2)
	4,491 kg. (F-350 DRW 4x4)
	4,491 kg. (F-450 DRW 4x2)
	4,491 kg. (F-450 DRW 4x4)
Springs	Leaf
Shock absorbers	Heavy-duty gas
Stabilizer bar	Standard on DRW pickup; optional in select packages on SRW pickup
STEERING
Assist	Power Hydraulic
BRAKES
Type	4-wheel vented-disc ABS (standard)
Front (rotor diametre)	363 mm (F-250/F-350)
	391 mm (F-450)
Rear (rotor diametre)	363 mm (F-250/F-350)
	400 mm (F-450)
WHEELS
Type	Steel or Aluminum
Size	17", 18" or 20" (F-250/F-350);
	17" DRW (F-350)
	19.5" DRW (F-450)
Number of studs	8 (F-250/F-350)
	10 (F-450)
Bolt-circle diametre	170 mm SRW
	200 mm F-350 DRW
	225 mm F-450 DRW

Chassis
FRONT SUSPENSION	lbs.
Type	Independent twin I-Beam (narrow front track) with coil springs, shock absorbers, stabilizer bar (F-250/F-350 4x2)
	Mono beam (narrow front track) with coil springs, shock absorbers, stabilizer bar (F-250/F-350 4x4)
	Mono beam (wide front track) with coil springs, shock absorbers, stabilizer bar (F-450)
Max. Front GAWR	lbs.
	5,000 (F-250)(4x2)
	5,600 (F-250)(4x4)
	5,000 (F-350 SRW)(4x2)
	5,600 (F-350 SRW)(4x4)
	5,300 (F-350 DRW)(4x2)
	5,600 (F-350 DRW)(4x4)
	5,600 (F-450 4X2)
	5,600 (F-450 4X4)
Springs	Coil
Shock absorbers	Heavy-duty gas
Stabilizer bar	Standard
REAR SUSPENSION
Type	Solid axle
Max. Rear GAWR	6,340 lbs. (F-250 4x2)
	6,340 lbs. (F-250 4x4)
	7,230 lbs. (F-350 SRW 4x2)
	6,780 lbs. (F-350 SRW 4x4)
	10,300 lbs. (F-350 DRW 4x2)
	9,900 lbs. (F-350 DRW 4x4)
	9,900 lbs. (F-450 DRW 4x2)
	9,900 lbs. (F-450 DRW 4x4)
Springs	Leaf
Shock absorbers	Heavy-duty gas
Stabilizer bar	Standard on DRW pickup; optional in select packages on SRW pickup
STEERING
Assist	Power Hydraulic
BRAKES
Type	4-wheel vented-disc ABS (standard)
Front (rotor diametre)	14.29" (F-250/F-350)
	15.39" (F-450)
Rear (rotor diametre)	14.29" (F-250/F-350)
	15.75" (F-450)
WHEELS
Type	Steel or Aluminum
Size	17", 18" or 20" (F-250/F-350);
	17" DRW (F-350)
	19.5" DRW (F-450)
Number of studs	8 (F-250/ F-350)
	10 (F-450)
Bolt-circle diametre	6.69" SRW
	7.87" F-350 DRW
	8.86" F-450 DRW

Towing

Conventional Towing - Maximum Available Loaded Trailer Weight Ratings
F-250 Super Duty SRW
Engine (Automatic Transmission)	Axle Ratio	GCWR	Regular Cab 4x2 141.5" WB 8' Box	Regular Cab 4x4 141.5" WB 8' Box	SuperCab 4x2 164.1" WB 8' Box	SuperCab 4x4 164.1" WB 8' Box	Crew Cab 4x2 159.7" WB 6-3/4' Box	Crew Cab 4x4 159.7" WB 6-3/4' Box	Crew Cab 4x2 175.9" WB 8' Box	Crew Cab 4x4 175.9" WB 8' Box
Units of Measure		(KG.)	(KG.)	(KG.)	(KG.)	(KG.)	(KG.)	(KG.)	(KG.)	(KG.)
6.7L V8 Turbo Diesel	3.31	10,659	7,530	7,348	7,348	7,167	7,348	7,212	7,212	7,031
6.7L V8 Turbo Diesel	3.31	13,608¹	8,255	9,072	8,845	9,979	8,845	9,979	8,845	9,934
6.7L V8 Turbo Diesel	3.55	13,608¹	8,255	9,072	8,845	9,979	8,845	9,979	8,845	9,934
6.7L V8 H.O. Turbo Diesel	3.55E²	12,837³	–	–	–	–	–	8,255	–	–
6.7L V8 H.O. Turbo Diesel	3.31	14,061¹	8,255	9,072	8,845	9,979	8,845	9,979	8,845	9,979
6.7L V8 H.O. Turbo Diesel	3.55	14,061¹	8,255	9,072	8,845	9,979	8,845	9,979	8,845	9,979
6.8L V8 Gas	3.73	9,525	6,713	6,532	6,577	6,396	6,577	6,396	6,486	6,260
6.8L V8 Gas	4.3	10,659	7,847	7,666	7,711	7,530	7,711	7,530	7,620	7,394
7.3L V8 Gas	3.73	10,659	–	7,666	–	7,530	–	7,575	–	7,439
7.3L V8 Gas	3.73E²	11,158	8,255	8,165	–	8,029	8,210	8,074	8,119	7,938
7.3L V8 Gas	4.3	11,793	8,255	8,255	–	8,255	8,255	8,255	8,255	8,255
Disclaimer
1. Requires F-250 High-Capacity Axle Upgrade Package
2. 3.55E and 3.73E are electronic locking rear axles.
3. Tremor^™ Off-Road Package
F-350 Super Duty SRW
Engine (Automatic Transmission)	Axle Ratio	GCWR	Regular Cab 4x2 141.5" WB 8' Box	Regular Cab 4x4 141.5" WB 8' Box	SuperCab 4x2 164.1" WB 8' Box	SuperCab 4x4 164.1" WB 8' Box	Crew Cab 4x2 159.7" WB 6-3/4' Box	Crew Cab 4x4 159.7" WB 6-3/4' Box	Crew Cab 4x2 175.9" WB 8' Box	Crew Cab 4x4 175.9" WB 8' Box
Units of Measure		(KG.)	(KG.)	(KG.)	(KG.)	(KG.)	(KG.)	(KG.)	(KG.)	(KG.)
6.7L V8 Turbo Diesel	3.31	14,061	9,072/ 9,072¹	9,072/ 9,072¹,²	10,433/ 10,433¹	10,523/ 10,478¹,²	10,433/ 10,433¹	10,523/ 10,478¹,²	10,433/ 10,433¹	10,387/ 10,387¹/ 10,342²
6.7L V8 Turbo Diesel	3.55	14,061	9,072/ 9,072¹	9,072/ 9,072¹,²	10,433/ 10,433¹	10,523/ 10,478¹,²	10,433/ 10,433¹	10,523/ 10,478¹,²	10,433/ 10,433¹	10,387/ 10,387¹/ 10,342²
6.7L V8 H.O. Turbo Diesel	3.31	14,424	9,072/ 9,072¹	9,072/ 9,072¹,²	–	10,841/ 10,841¹,²	–	10,841/ 10,841¹,²	10,433/ 10,433¹	10,750/ 10,705¹,²
6.7L V8 H.O. Turbo Diesel	3.55	14,152³	–	–	–	–	–	8,255	–	–
6.7L V8 H.O. Turbo Diesel	3.55	15,966	9,072/ 9,072¹	9,072/ 9,072¹,²	10,433	10,886/ 10,886¹,²	–	10,886/ 10,886¹,²	10,433/ 10,433¹	11,158/ 11,340¹,²
6.8L V8 Gas	3.73	9,525	6,668¹	6,532/ 6,486¹,²	6,532¹	6,350/ 6,350¹,²	6,532/ 6,532¹	6,350/ 6,350¹,²	6,441/ 6,396¹	6,260/ 6,214¹,²
6.8L V8 Gas	4.3	11,068	8,210¹	8,074/ 8,029¹,²	–	7,893/ 7,893¹,²	8,074/ 8,074¹	–	7,983/ 7,938¹	7,802/ 7,756¹,²
7.3L V8 Gas	3.73	11,431	8,255¹	8,255/ 8,255¹,²	–	8,165/ 8,165¹,²	8,255/ 8,255¹	8,165/ 8,165¹/ 8,119²	8,255/ 8,210¹	8,074/ 8,074¹,²
7.3L V8 Gas	4.3	12,973³	–	–	–	–	–	8,255	–	–
7.3L V8 Gas	4.3	13,154	8,255¹	8,845/ 8,845¹,²	–	8,845/ 8,845¹,²	8,845/ 8,845¹	8,845/ 8,845¹,²	8,845/ 8,845¹	8,845/ 8,845¹,²
Disclaimer
1. 18" All-Season Tires.
2. 18" and 20" All-Terrain Tires
3. Tremor^™ Off-Road Package.
F-350/F-450 Super Duty DRW
Engine (Automatic Transmission)	Axle Ratio	GCWR	F-350 Regular Cab 4x2 141.5" WB 8' Box	F-350 Regular Cab 4x4 141.5" WB 8' Box	F-350 Crew Cab 4x2 175.9" WB 8' Box	F-350 Crew Cab 4x4 175.9" WB 8' Box	F-450 Regular Cab 4x2 141.5" WB 8' Box	F-450 Regular Cab 4x4 141.5" WB 8' Box	F-450 Crew Cab 4x2 175.9" WB 8' Box	F-450 Crew Cab 4x4 175.9" WB 8' Box
Units of Measure		(KG.)	(KG.)	(KG.)	(KG.)	(KG.)	(KG.)	(KG.)	(KG.)	(KG.)
6.7L V8 Turbo Diesel	3.55	18,144	11,249	11,249	12,247	12,247	–	–	–	–
6.7L V8 Turbo Diesel	4.1	19,913	11,249	11,249	12,247	12,247	–	–	–	–
6.7L V8 Turbo Diesel	4.3	19,731	–	–	–	–	–	–	13,608	13,608
6.7L V8 Turbo Diesel	4.3	21,183	–	–	–	–	11,340	11,340	–	–
6.7L V8 H.O. Turbo Diesel	3.55	18,370	11,249	11,249	12,247	12,247	–	–	–	–
6.7L V8 H.O. Turbo Diesel	4.1	20,684	11,249	11,249	12,701	12,701	–	–	–	–
6.7L V8 H.O. Turbo Diesel	4.3	19,731	–	–	–	–	–	–	13,608	13,608
6.7L V8 H.O. Turbo Diesel	4.3	21,183	–	–	–	–	11,340	11,340	–	–
6.7L V8 H.O. Turbo Diesel	4.3	21,772²	–	–	–	–	8,255	–	–	–
6.8L V8 Gas	4.3	11,521	8,482/ 8,255¹	8,301	–	8,029	–	–	–	–
7.3L V8 Gas	3.73	11,657	8,573	8,391	–	8,119	–	–	–	–
7.3L V8 Gas	4.3	13,381	9,979	9,979	–	9,843	–	–	–	–
Disclaimer
1. Heavy Duty Payload Package
2. 40k Gooseneck Tow Package
5th-Wheel - Maximum Available Loaded Trailer Weight Ratings
F-250 Super Duty SRW
Engine (Automatic Transmission)	Axle Ratio	GCWR	Regular Cab 4x2 141.5" WB 8' Box	Regular Cab 4x4 141.5" WB 8' Box	SuperCab 4x2 164.1" WB 8' Box	SuperCab 4x4 164.1" WB 8' Box	Crew Cab 4x2 159.7" WB 6-3/4' Box	Crew Cab 4x4 159.7" WB 6-3/4' Box	Crew Cab 4x2 175.9" WB 8' Box	Crew Cab 4x4 175.9" WB 8' Box
Units of Measure		(KG.)	(KG.)	(KG.)	(KG.)	(KG.)	(KG.)	(KG.)	(KG.)	(KG.)
6.7L V8 Turbo Diesel	3.31	10,659	7,394	7,212	7,212	6,396	7,257	6,532	6,804	5,534
6.7L V8 Turbo Diesel	3.31	13,608¹	10,115	9,843	9,480	9,344	9,480	9,299	9,163	8,800
6.7L V8 Turbo Diesel	3.55	13,608¹	10,115	9,843	9,480	9,344	9,480	9,299	9,163	8,800
6.7L V8 H.O. Turbo Diesel	3.55E²	12,837³	–	–	–	–	–	8,890	–	–
6.7L V8 H.O. Turbo Diesel	3.31	14,061¹	10,115	9,843	9,480	9,344	9,480	9,299	9,163	8,981
6.7L V8 H.O. Turbo Diesel	3.55	14,061¹	10,115	9,843	9,480	9,344	9,480	9,299	9,163	8,981
6.8L V8 Gas	3.73	9,525	6,713	6,441	6,441	6,260	6,486	6,305	6,350	6,169
6.8L V8 Gas	4.3	10,659	7,847	7,575	7,575	7,394	7,620	7,439	7,484	7,303
7.3L V8 Gas	3.73	10,659	–	7,575	–	7,394	–	7,439	–	7,303
7.3L V8 Gas	3.73E²	11,158	8,255	8,074	–	7,893	8,119	7,938	8,029	7,802
7.3L V8 Gas	4.3	11,793	8,845	8,709	–	8,528	8,754	8,573/ 8,391³	8,664	8,074
Disclaimer
1. Requires F-250 High-Capacity Axle Upgrade Package
2. 3.55E and 3.73E are electronic locking rear axles.
3. Tremor^™ Off-Road Package
F-350 Super Duty SRW
Engine (Automatic Transmission)	Axle Ratio	GCWR	Regular Cab 4x2 141.5" WB 8' Box	Regular Cab 4x4 141.5" WB 8' Box	SuperCab 4x2 164.1" WB 8' Box	SuperCab 4x4 164.1" WB 8' Box	Crew Cab 4x2 159.7" WB 6-3/4' Box	Crew Cab 4x4 159.7" WB 6-3/4' Box	Crew Cab 4x2 175.9" WB 8' Box	Crew Cab 4x4 175.9" WB 8' Box
Units of Measure		(KG.)	(KG.)	(KG.)	(KG.)	(KG.)	(KG.)	(KG.)	(KG.)	(KG.)
6.7L V8 Turbo Diesel	3.31	14,061	10,024/ 10,750¹	9,979/ 10,569¹,²	9,435/ 10,523¹	9,299/ 10,342¹/ 10,387²	9,389/ 10,569¹	9,299/ 10,297¹/ 10,387²	9,163/ 10,433¹	9,026/ 10,251¹,²
6.7L V8 Turbo Diesel	3.55	14,061	10,024/ 10,750¹	9,979/ 10,569¹,²	9,435/ 10,523¹	9,299/ 10,342¹/ 10,387²	9,389/ 10,569¹	9,299/ 10,297¹/ 10,387²	9,163/ 10,433¹	9,026/ 10,251¹,²
6.7L V8 H.O. Turbo Diesel	3.31	14,424	10,024/ 11,113¹	9,979/ 10,886¹,²	–	9,299/ 10,251¹/ 10,705²	–	9,299/ 10,251¹/ 10,705²	9,208/ 10,433¹	9,026/ 10,251¹/10,614²
6.7L V8 H.O. Turbo Diesel	3.55	14,152³	–	–	–	–	–	10,433	–	–
6.7L V8 H.O. Turbo Diesel	3.55	15,966	10,024/ 11,294¹	9,979/ 11,204¹/ 12,428²	9,480/ 10,705¹	9,299/ 10,251¹/ 10,705²	–	9,299/ 10,251¹/ 11,748²	9,208/ 10,433¹	9,026/ 10,251¹/11,612²
6.8L V8 Gas	3.73	9,525	6,577¹	6,396/ 6,396¹,²	6,441/ 6,396¹	6,260/ 6,214¹,²	6,441/ 6,396¹	6,260/ 6,214¹,²	6,350/ 6,305¹	6,169/ 6,123¹,²
6.8L V8 Gas	4.3	11,068	8,119¹	7,938/ 7,938¹,²	–	7,802/ 7,756¹,²	7,983/ 7,938¹	–	7,893/ 7,847¹	7,711/ 7,666¹,²
7.3L V8 Gas	3.73	11,431	8,391¹	8,255/ 8,210¹,²	–	8,074/ 8,029¹,²	8,255/ 8,210¹	8,074/ 8,029¹,²	8,119/8,119¹	7,983/ 7,938¹,²
7.3L V8 Gas	4.3	12,973³	–	–	–	–	–	9,571	–	–
7.3L V8 Gas	4.3	13,154	10,115¹	9,979/ 9,934¹,²	–	9,662/ 9,752¹,²	9,571/ 9,934¹	9,480/ 9,752¹,²	9,571/ 9,843¹	9,435/ 9,662¹,²
Disclaimer
1. 18" All-Season Tires.
2. 18" and 20" All-Terrain Tires
3. Tremor^™ Off-Road Package.
F-350/F-450 Super Duty DRW
Engine (Automatic Transmission)	Axle Ratio	GCWR	F-350 Regular Cab 4x2 141.5" WB 8' Box	F-350 Regular Cab 4x4 141.5" WB 8' Box	F-350 Crew Cab 4x2 175.9" WB 8' Box	F-350 Crew Cab 4x4 175.9" WB 8' Box	F-450 Regular Cab 4x2 141.5" WB 8' Box	F-450 Regular Cab 4x4 141.5" WB 8' Box	F-450 Crew Cab 4x2 175.9" WB 8' Box	F-450 Crew Cab 4x4 175.9" WB 8' Box
Units of Measure		(KG.)	(KG.)	(KG.)	(KG.)	(KG.)	(KG.)	(KG.)	(KG.)	(KG.)
6.7L V8 Turbo Diesel	3.55	18,144	14,651	14,470	14,334	14,152	–	–	–	–
6.7L V8 Turbo Diesel	4.1	19,913	15,876	15,876	15,876	15,876	–	–	–	–
6.7L V8 Turbo Diesel	4.3	19,731	–	–	–	–	–	–	15,513	14,515
6.7L V8 Turbo Diesel	4.3	21,183	–	–	–	–	15,876	15,876	–	–
6.7L V8 H.O. Turbo Diesel	3.55	18,370	14,878	14,651	14,560	14,379	–	–	–	–
6.7L V8 H.O. Turbo Diesel	4.1	20,684	15,876	15,876	15,876	15,830	–	–	–	–
6.7L V8 H.O. Turbo Diesel	4.3	19,731	–	–	–	–	–	–	15,467	14,470
6.7L V8 H.O. Turbo Diesel	4.3	21,183	–	–	–	–	15,876	15,876	–	–
6.7L V8 H.O. Turbo Diesel	4.3	21,772²	–	–	–	–	15,876	–	–	–
6.8L V8 Gas	4.3	11,521	8,391/ 8,482¹	8,210	–	7,893	–	–	–	–
7.3L V8 Gas	3.73	11,657	8,482	8,255	–	7,983	–	–	–	–
7.3L V8 Gas	4.3	13,381	10,206	9,979	–	9,707	–	–	–	–
Disclaimer
1. Heavy Duty Payload Package
2. 40k Gooseneck Tow Package
Gooseneck Towing - Maximum Available Loaded Trailer Weight Ratings
F-250 Super Duty SRW
Engine (Automatic Transmission)	Axle Ratio	GCWR	Regular Cab 4x2 141.5" WB 8' Box	Regular Cab 4x4 141.5" WB 8' Box	SuperCab 4x2 164.1" WB 8' Box	SuperCab 4x4 164.1" WB 8' Box	Crew Cab 4x2 159.7" WB 6-3/4' Box	Crew Cab 4x4 159.7" WB 6-3/4' Box	Crew Cab 4x2 175.9" WB 8' Box	Crew Cab 4x4 175.9" WB 8' Box
Units of Measure		(KG.)	(KG.)	(KG.)	(KG.)	(KG.)	(KG.)	(KG.)	(KG.)	(KG.)
6.7L V8 Turbo Diesel	3.31	10,659	7,484	7,303	7,303	6,849	7,303	6,985	7,212	6.03
6.7L V8 Turbo Diesel	3.31	13,608¹	10,387	10,206	9,979	9,798	9,979	9,798	9,616	9,253
6.7L V8 Turbo Diesel	3.55	13,608¹	10,387	10,206	9,979	9,798	9,979	9,798	9,616	9,253
6.7L V8 H.O. Turbo Diesel	3.55E²	12,837³	–	–	–	–	–	9,072	–	–
6.7L V8 H.O. Turbo Diesel	3.31	14,061¹	10,433	10,297	9,979	9,798	9,979	9,798	9,616	9,480
6.7L V8 H.O. Turbo Diesel	3.55	14,061¹	10,433	10,297	9,979	9,798	9,979	9,798	9,616	9,480
6.8L V8 Gas	3.73	9,525	6,713	6,532	6,532	6,350	6,532	6,396	6,441	6,260
6.8L V8 Gas	4.3	10,659	7,847	7,666	7,666	7,484	7,666	7,530	7,575	7,394
7.3L V8 Gas	3.73	10,659	–	7,666	–	7,484	–	7,530	–	7,394
7.3L V8 Gas	3.73E²	11,158	8,346	8,165	–	7,983	8,165	8,029	8,074	7,893
7.3L V8 Gas	4.3	11,793	8,845	8,800	–	8,618	8,800	8,664/ 8,391³	8,709	8,528
Disclaimer
1. Requires F-250 High-Capacity Axle Upgrade Package
2. 3.55E and 3.73E are electronic locking rear axles.
3. Tremor^™ Off-Road Package
F-350 Super Duty SRW
Engine (Automatic Transmission)	Axle Ratio	GCWR	Regular Cab 4x2 141.5" WB 8' Box	Regular Cab 4x4 141.5" WB 8' Box	SuperCab 4x2 164.1" WB 8' Box	SuperCab 4x4 164.1" WB 8' Box	Crew Cab 4x2 159.7" WB 6-3/4' Box	Crew Cab 4x4 159.7" WB 6-3/4' Box	Crew Cab 4x2 175.9" WB 8' Box	Crew Cab 4x4 175.9" WB 8' Box
Units of Measure		(KG.)	(KG.)	(KG.)	(KG.)	(KG.)	(KG.)	(KG.)	(KG.)	(KG.)
6.7L V8 Turbo Diesel	3.31	14,061	10,478/ 10,795¹	10,433/ 10,614¹,²	9,934/ 10,614¹	9,798/ 10,433¹,²	9,843/ 10,614¹	9,798/ 10,433¹,²	9,662/ 10,523¹	9,480/ 10,342¹,²
6.7L V8 Turbo Diesel	3.55	14,061	10,478/ 10,795¹	10,433/ 10,614¹,²	9,934/ 10,614¹	9,798/ 10,433¹,²	9,843/ 10,614¹	9,798/ 10,433¹,²	9,662/ 10,523¹	9,480/ 10,342¹,²
6.7L V8 H.O. Turbo Diesel	3.31	14,424	10,478/ 11,158¹	10,433/ 10,977¹,²	–	9,798/ 10,705¹/ 10,795²	–	9,798/ 10,705¹/ 10,795²	9,662/ 10,886¹	9,480/ 10,705¹,²
6.7L V8 H.O. Turbo Diesel	3.55	14,152³	–	–	–	–	–	10,433	–	–
6.7L V8 H.O. Turbo Diesel	3.55	15,966	10,478/ 11,748¹	10,433/ 11,703¹/ 12,519²	9,934/ 11,158¹	9,798/ 10,705¹/ 12,338²	–	9,798/ 10,705¹/ 12,247²	9,662/ 10,932¹	9,480/ 10,705¹/ 12,111²
6.8L V8 Gas	3.73	9,525	6,622¹	6,486/ 6,441¹,²	6,486/ 6,486¹	6,305/ 6,305	6,486/ 6,486¹	6,305/ 6,305¹,²	6,396/ 6,396¹	6,214/ 6,214¹/ 6,169²
6.8L V8 Gas	4.3	11,068	8,165¹	8,029/ 7,983¹,²	–	7,847/ 7,847¹,²	8,029/ 8,029¹	–	7,938/ 7,938¹	7,756/ 7,756¹/ 7,711²
7.3L V8 Gas	3.73	11,431	8,437¹	8,301/ 8,301¹,²	–	8,119/ 8,119¹,²	8,301/ 8,301¹	8,119/ 8,119¹,²	8,210/ 8,165¹	8,029/ 8,029¹,²
7.3L V8 Gas	4.3	12,973³	–	–	–	–	–	9,525	–	–
7.3L V8 Gas	4.3	13,154	10,160¹	10,024/ 10,024¹,²	–	9,843/ 9,843¹,²	10,024/ 10,024¹	9,843/ 9,843¹,²	9,934/ 9,888¹	9,752/ 9,752¹,²
Disclaimer
1. 18" All-Season Tires.
2. 18" and 20" All-Terrain Tires
3. Tremor^™ Off-Road Package.
F-350/F-450 Super Duty DRW
Engine (Automatic Transmission)	Axle Ratio	GCWR	F-350 Regular Cab 4x2 141.5" WB 8' Box	F-350 Regular Cab 4x4 141.5" WB 8' Box	F-350 Crew Cab 4x2 175.9" WB 8' Box	F-350 Crew Cab 4x4 175.9" WB 8' Box	F-450 Regular Cab 4x2 141.5" WB 8' Box	F-450 Regular Cab 4x4 141.5" WB 8' Box	F-450 Crew Cab 4x2 175.9" WB 8' Box	F-450 Crew Cab 4x4 175.9" WB 8' Box
Units of Measure		(KG.)	(KG.)	(KG.)	(KG.)	(KG.)	(KG.)	(KG.)	(KG.)	(KG.)
6.7L V8 Turbo Diesel	3.55	18,144	14,742	14,515	14,424	14,243	–	–	–	–
6.7L V8 Turbo Diesel	4.1	19,913	16,511	16,284	16,193	16,012	–	–	–	–
6.7L V8 Turbo Diesel	4.3	19,731	–	–	–	–	–	–	15,785	15,014
6.7L V8 Turbo Diesel	4.3	21,183	–	–	–	–	17,509	16,919	–	–
6.7L V8 H.O. Turbo Diesel	3.55	18,370	14,923	14,742	14,651	14,470	–	–	–	–
6.7L V8 H.O. Turbo Diesel	4.1	20,684	17,237	17,055	16,964	16,375	–	–	–	–
6.7L V8 H.O. Turbo Diesel	4.3	19,731	–	–	–	–	–	–	15,740	14,969
6.7L V8 H.O. Turbo Diesel	4.3	21,183	–	–	–	–	17,509	16,874	–	–
6.7L V8 H.O. Turbo Diesel	4.3	21,772²	–	–	–	–	18,144	–	–	–
6.8L V8 Gas	4.3	11,521	8,437/ 8,573¹	8,255	–	7,983	–	–	–	–
7.3L V8 Gas	3.73	11,657	8,528	8,346	–	8,074	–	–	–	–
7.3L V8 Gas	4.3	13,381	10,206	10,070	–	9,798	–	–	–	–
Disclaimer
1. Heavy Duty Payload Package
2. 40k Gooseneck Tow Package

Conventional Towing - Maximum Available Loaded Trailer Weight Ratings
F-250 Super Duty SRW
Engine (Automatic Transmission)	Axle Ratio	GCWR	Regular Cab 4x2 141.5" WB 8' Box	Regular Cab 4x4 141.5" WB 8' Box	SuperCab 4x2 164.1" WB 8' Box	SuperCab 4x4 164.1" WB 8' Box	Crew Cab 4x2 159.7" WB 6-3/4' Box	Crew Cab 4x4 159.7" WB 6-3/4' Box	Crew Cab 4x2 175.9" WB 8' Box	Crew Cab 4x4 175.9" WB 8' Box
Units of Measure		(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)
6.7L V8 Turbo Diesel	3.31	23,500	16,600	16,200	16,200	15,800	16,200	15,900	15,900	15,500
6.7L V8 Turbo Diesel	3.31	30,000¹	18,200	20,000	19,500	22,000	19,500	22,000	19,500	21,900
6.7L V8 Turbo Diesel	3.55	30,000¹	18,200	20,000	19,500	22,000	19,500	22,000	19,500	21,900
6.7L V8 H.O. Turbo Diesel	3.55E²	28,300³	–	–	–	–	–	18,200	–	–
6.7L V8 H.O. Turbo Diesel	3.31	31,000¹	18,200	20,000	19,500	22,000	19,500	22,000	19,500	22,000
6.7L V8 H.O. Turbo Diesel	3.55	31,000¹	18,200	20,000	19,500	22,000	19,500	22,000	19,500	22,000
6.8L V8 Gas	3.73	21,000	14,800	14,400	14,500	14,100	14,500	14,100	14,300	13,800
6.8L V8 Gas	4.3	23,500	17,300	16,900	17,000	16,600	17,000	16,600	16,800	16,300
7.3L V8 Gas	3.73	23,500	–	16,900	–	16,600	–	16,700	–	16,400
7.3L V8 Gas	3.73E²	24,600	18,200	18,000	–	17,700	18,100	17,800	17,900	17,500
7.3L V8 Gas	4.3	26,000	18,200	18,200	–	18,200	18,200	18,200	18,200	18,200
Disclaimer
1. Requires F-250 High-Capacity Axle Upgrade Package
2. 3.55E and 3.73E are electronic locking rear axles.
3. TREMOR^™ Off-Road Package
F-350 Super Duty SRW
Engine (Automatic Transmission)	Axle Ratio	GCWR	Regular Cab 4x2 141.5" WB 8' Box	Regular Cab 4x4 141.5" WB 8' Box	SuperCab 4x2" 164.1 WB 8' Box	SuperCab 4x4 164.1" WB 8' Box	Crew Cab 4x2 159.7" WB 6-3/4' Box	Crew Cab 4x4 159.7" WB 6-3/4' Box	Crew Cab 4x2 175.9" WB 8' Box	Crew Cab 4x4 175.9" WB 8' Box
Units of Measure		(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)
6.7L V8 Turbo Diesel	3.31	31,000	20,000/20,000¹	20,000/20,000¹,²	23,000/23,000¹	23,200/23,100¹,²	23,000/23,000¹	23,200/23,100¹,²	23,000/23,000¹	22,900/22,900¹/22,800²
6.7L V8 Turbo Diesel	3.55	31,000	20,000/20,000¹	20,000/20,000¹,²	23,000/23,000¹	23,200/23,100¹,²	23,000/23,000¹	23,200/23,100¹,²	23,000/23,000¹	22,900/22,900¹/22,800²
6.7L V8 H.O. Turbo Diesel	3.31	31,800	20,000/20,000¹	20,000/20,000¹,²	–	23,900/23,900¹,²	–	23,900/23,900¹,²	23,000/23,000¹	23,700/23,600¹,²
6.7L V8 H.O. Turbo Diesel	3.55	31,200³	–	–	–	–	–	18,200	–	–
6.7L V8 H.O. Turbo Diesel	3.55	35,200	20,000/20,000¹	20,000/20,000¹,²	23,000	24,000/24,000¹,²	–	24,000/24,000¹,²	23,000/23,000¹	24,600/25,000¹,²
6.8L V8 Gas	3.73	21,000	14,700¹	14,400/14,300¹,²	14,400/14,400¹	14,000/14,000¹,²	14,400/14,400¹	14,000/14,000¹,²	14,200/14,100¹	13,800/13,700¹,²
6.8L V8 Gas	4.3	24,400	18,100¹	17,800/17,700¹,²	–	17,400/17,400¹,²	17,800/17,800¹	–	17,600/17,500¹	17,200/17,100¹,²
7.3L V8 Gas	3.73	25,200	18,200¹	18,200/18,200¹,²	–	18,000/18,000¹,²	18,200/18,200¹	18,000/18,000¹/17,900²	18,200/18,100¹	17,800/17,800¹,²
7.3L V8 Gas	4.3	28,600³	–	–	–	–	–	18,200	–	–
7.3L V8 Gas	4.3	29,000	18,200¹	19,500/19,500¹,²	–	19,500/19,500¹,²	19,500/19,500¹.	19,500/19,500¹,²	19,500/19,500¹	19,500/19,500¹,²
Disclaimer
1. 18" All-Season Tires.
2. 18" and 20" All-Terrain Tires
3. TREMOR^™ Off-Road Package.
F-350/F-450 Super Duty DRW
Engine (Automatic Transmission)	Axle Ratio	GCWR	F-350 Regular Cab 4x2 141.5" WB 8' Box	F-350 Regular Cab 4x4 141.5" WB 8' Box	F-350 Crew Cab 4x2 175.9" WB 8' Box	F-350 Crew Cab 4x4 175.9" WB 8' Box	F-450 Regular Cab 4x2 141.5" WB 8' Box	F-450 Regular Cab 4x4 141.5" WB 8' Box	F-450 Crew Cab 4x2 175.9" WB 8' Box	F-450 Crew Cab 4x4 175.9" WB 8' Box
Units of Measure		(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)
6.7L V8 Turbo Diesel	3.55	40,000	24,800	24,800	27,000	27,000	–	–	–	–
6.7L V8 Turbo Diesel	4.1	43,900	24,800	24,800	27,000	27,000	–	–	–	–
6.7L V8 Turbo Diesel	4.3	43,500	–	–	–	–	–	–	30,000	30,000
6.7L V8 Turbo Diesel	4.3	46,700	–	–	–	–	25,000	25,000	–	–
6.7L V8 H.O. Turbo Diesel	3.55	40,500	24,800	24,800	27,000	27,000	–	–	–	–
6.7L V8 H.O. Turbo Diesel	4.1	45,600	24,800	24,800	28,000	28,000	–	–	–	–
6.7L V8 H.O. Turbo Diesel	4.3	43,500	–	–	–	–	–	–	30,000	30,000
6.7L V8 H.O. Turbo Diesel	4.3	46,700	–	–	–	–	25,000	25,000	–	–
6.7L V8 H.O. Turbo Diesel	4.3	48,000²	–	–	–	–	18,200	–	–	–
6.8L V8 Gas	4.3	25,400	18,700/18,200¹	18,300	–	17,700	–	–	–	–
7.3L V8 Gas	3.73	25,700	18,900	18,500	–	17,900	–	–	–	–
7.3L V8 Gas	4.3	29,500	22,000	22,000	–	21,700	–	–	–	–
Disclaimer
1. Heavy Duty Payload Package
2. 40k Gooseneck Tow Package
5th-Wheel - Maximum Available Loaded Trailer Weight Ratings
F-250 Super Duty SRW
Engine (Automatic Transmission)	Axle Ratio	GCWR	Regular Cab 4x2 141.5" WB 8' Box	Regular Cab 4x4 141.5" WB 8' Box	SuperCab 4x2 164.1" WB 8' Box	SuperCab 4x4 164.1" WB 8' Box	Crew Cab 4x2 159.7" WB 6-3/4' Box	Crew Cab 4x4 159.7" WB 6-3/4' Box	Crew Cab 4x2 175.9" WB 8' Box	Crew Cab 4x4 175.9" WB 8' Box
Units of Measure		(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)
6.7L V8 Turbo Diesel	3.31	23,500	16,300	15,900	15,900	14,100	16,000	14,400	15,000	12,200
6.7L V8 Turbo Diesel	3.31	30,000¹	22,300	21,700	20,900	20,600	20,900	20,500	20,200	19,400
6.7L V8 Turbo Diesel	3.55	30,000¹	22,300	21,700	20,900	20,600	20,900	20,500	20,200	19,400
6.7L V8 H.O. Turbo Diesel	3.55E²	28,300³	–	–	–	–	–	19,600	–	–
6.7L V8 H.O. Turbo Diesel	3.31	31,000¹	22,300	21,700	20,900	20,600	20,900	20,500	20,200	19,800
6.7L V8 H.O. Turbo Diesel	3.55	31,000¹	22,300	21,700	20,900	20,600	20,900	20,500	20,200	19,800
6.8L V8 Gas	3.73	21,000	14,800	14,200	14,200	13,800	14,300	13,900	14,000	13,600
6.8L V8 Gas	4.3	23,500	17,300	16,700	16,700	16,300	16,800	16,400	16,500	16,100
7.3L V8 Gas	3.73	23,500	–	16,700	–	16,300	–	16,400	–	16,100
7.3L V8 Gas	3.73E²	24,600	18,200	17,800	–	17,400	17,900	17,500	17,700	17,200
7.3L V8 Gas	4.3	26,000	19,500	19,200	–	18,800	19,300	18,900/18,500³	19,100	17,800
Disclaimer
1. Requires F-250 High-Capacity Axle Upgrade Package
2. 3.55E and 3.73E are electronic locking rear axles.
3. TREMOR^™ Off-Road Package
F-350 Super Duty SRW
Engine (Automatic Transmission)	Axle Ratio	GCWR	Regular Cab 4x2 141.5" WB 8' Box	Regular Cab 4x4 141.5" WB 8' Box	SuperCab 4x2 164.1" WB 8' Box	SuperCab 4x4 164.1"WB 8' Box	Crew Cab 4x2 159.7" WB 6-3/4' Box	Crew Cab 4x4 159.7" WB 6-3/4' Box	Crew Cab 4x2 175.9" WB 8' Box	Crew Cab 4x4 175.9" WB 8' Box
Units of Measure		(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)
6.7L V8 Turbo Diesel	3.31	31,000	22,100/23,700¹	22,000/23,300¹,²	20,800/23,200¹	20,500/22,800¹/22,900²	20,700/23,300¹	20,500/22,700¹/22,900²	20,200/23,000¹	19,900/22,600¹,²
6.7L V8 Turbo Diesel	3.55	31,000	22,100/23,700¹	22,000/23,300¹,²	20,800/23,200¹	20,500/22,800¹/22,900²	20,700/23,300¹	20,500/22,700¹/22,900²	20,200/23,000¹	19,900/22,600¹,²
6.7L V8 H.O. Turbo Diesel	3.31	31,800	22,100/24,500¹	22,000/24,000¹,²	–	20,500/22,600¹/23,600²	–	20,500/22,600¹/23,600²	20,300/23,000¹	19,900/22,600¹/23,400²
6.7L V8 H.O. Turbo Diesel	3.55	31,200³	–	–	–	–	–	23,000	–	–
6.7L V8 H.O. Turbo Diesel	3.55	35,200	22,100/24,900¹	22,000/24,700¹/27,400²	20,900/23,600¹	20,500/22,600¹/26,300²	–	20,500/22,600¹/25,900²	20,300/23,000¹	19,900/22,600¹/25,600²
6.8L V8 Gas	3.73	21,000	14,500¹	14,100/14,100¹,²	14,200/14,100¹	13,800/13,700¹,²	14,200/14,100¹	13,800/13,700¹,²	14,000/13,900¹	13,600/13,500¹,²
6.8L V8 Gas	4.3	24,400	17,900¹	17,500/17,500¹,²	–	17,200/17,100¹,²	17,600/17,500¹	–	17,400/17,300¹	17,000/16,900¹,²
7.3L V8 Gas	3.73	25,200	18,500¹	18,200/18,100¹,²	–	17,800/17,700¹,²	18,200/18,100¹	17,800/17,700¹,²	17,900/17,900¹	17,600/17,500¹,²
7.3L V8 Gas	4.3	28,600³	–	–	–	–	–	21,100	–	–
7.3L V8 Gas	4.3	29,000	22,300¹	22,000/21,900¹,²	–	21,300/21,500¹,²	21,100/21,900¹	20,900/21,500¹,²	21,100/21,700¹	20,800/21,300¹,²
Disclaimer
1. 18" All-Season Tires.
2. 18" and 20" All-Terrain Tires
3. TREMOR^™ Off-Road Package.
F-350/F-450 Super Duty DRW
Engine (Automatic Transmission)	Axle Ratio	GCWR	F-350 Regular Cab 4x2 141.5" WB 8' Box	F-350 Regular Cab 4x4 141.5" WB 8' Box	F-350 Crew Cab 4x2 175.9" WB 8' Box	F-350 Crew Cab 4x4 175.9" WB 8' Box	F-450 Regular Cab 4x2 141.5" WB 8' Box	F-450 Regular Cab 4x4 141.5" WB 8' Box	F-450 Crew Cab 4x2 175.9" WB 8' Box	F-450 Crew Cab 4x4 175.9" WB 8' Box
Units of Measure		(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)
6.7L V8 Turbo Diesel	3.55	40,000	32,300	31,900	31,600	31,200	–	–	–	–
6.7L V8 Turbo Diesel	4.1	43,900	35,000	35,000	35,000	35,000	–	–	–	–
6.7L V8 Turbo Diesel	4.3	43,500	–	–	–	–	–	–	34,200	32,000
6.7L V8 Turbo Diesel	4.3	46,700	–	–	–	–	35,000	35,000	–	–
6.7L V8 H.O. Turbo Diesel	3.55	40,500	32,800	32,300	32,100	31,700	–	–	–	–
6.7L V8 H.O. Turbo Diesel	4.1	45,600	35,000	35,000	35,000	34,900	–	–	–	–
6.7L V8 H.O. Turbo Diesel	4.3	43,500	–	–	–	–	–	–	34,100	31,900
6.7L V8 H.O. Turbo Diesel	4.3	46,700	–	–	–	–	35,000	35,000	–	–
6.7L V8 H.O. Turbo Diesel	4.3	48,000²	–	–	–	–	35,000	–	–	–
6.8L V8 Gas	4.3	25,400	18,500/18,700¹	18,1000	–	17,400	–	–	–	–
7.3L V8 Gas	3.73	25,700	18,700	18,200	–	17,600	–	–	–	–
7.3L V8 Gas	4.3	29,500	22,500	22,000	–	21,400	–	–	–	–
Disclaimer
1. Heavy Duty Payload Package
2. 40k Gooseneck Tow Package
Gooseneck Towing - Maximum Available Loaded Trailer Weight Ratings
F-250 Super Duty SRW
Engine (Automatic Transmission)	Axle Ratio	GCWR	Regular Cab 4x2 141.5" WB 8' Box	Regular Cab 4x4 141.5" WB 8' Box	SuperCab 4x2 164.1" WB 8' Box	SuperCab 4x4 164.1" WB 8' Box	Crew Cab 4x2 159.7" WB 6-3/4' Box	Crew Cab 4x4 159.7" WB 6-3/4' Box	Crew Cab 4x2 175.9" WB 8' Box	Crew Cab 4x4 175.9" WB 8' Box
Units of Measure		(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)
6.7L V8 Turbo Diesel	3.31	23,500	16,500	16,100	16,100	15,100	16,100	15,400	15,900	13,300
6.7L V8 Turbo Diesel	3.31	30,000¹	22,900	22,500	22,000	21,600	22,000	21,600	21,200	20,400
6.7L V8 Turbo Diesel	3.55	30,000¹	22,900	22,500	22,000	21,600	22,000	21,600	21,200	20,400
6.7L V8 H.O. Turbo Diesel	3.55E²	28,300³	–	–	–	–	–	20,000	–	–
6.7L V8 H.O. Turbo Diesel	3.31	31,000¹	23,000	22,700	22,000	21,600	22,000	21,600	21,200	20,900
6.7L V8 H.O. Turbo Diesel	3.55	31,000¹	23,000	22,700	22,000	21,600	22,000	21,600	21,200	20,900
6.8L V8 Gas	3.73	21,000	14,800	14,400	14,400	14,000	14,400	14,100	14,200	13,800
6.8L V8 Gas	4.3	23,500	17,300	16,900	16,900	16,500	16,900	16,600	16,700	16,300
7.3L V8 Gas	3.73	23,500	–	16,900	–	16,500	–	16,600	–	16,300
7.3L V8 Gas	3.73E²	24,600	18,400	18,000	–	17,600	18,000	17,700	17,800	17,400
7.3L V8 Gas	4.3	26,000	19,500	19,400	–	19,000	19,400	19,100/18,500³	19,200	18,800
Disclaimer
1. Requires F-250 High-Capacity Axle Upgrade Package
2. 3.55E and 3.73E are electronic locking rear axles.
3. TREMOR^™ Off-Road Package
F-350 Super Duty SRW
Engine (Automatic Transmission)	Axle Ratio	GCWR	Regular Cab 4x2 141.5" WB 8' Box	Regular Cab 4x4 141.5" WB 8' Box	SuperCab 4x2 164.1" WB 8' Box	SuperCab 4x4 164.1" WB 8' Box	Crew Cab 4x2 159.7" WB 6-3/4' Box	Crew Cab 4x4 159.7" WB 6-3/4' Box	Crew Cab 4x2 175.9" WB 8' Box	Crew Cab 4x4 175.9" WB 8' Box
Units of Measure		(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)
6.7L V8 Turbo Diesel	3.31	31,000	23,100/23,800¹	23,000/23,400¹,²	21,900/23,400¹	21,600/23,000¹,²	21,700/23,400¹	21,600/23,000¹,²	21,300/23,200¹	20,900/22,800¹,²
6.7L V8 Turbo Diesel	3.55	31,000	23,100/23,800¹	23,000/23,400¹,²	21,900/23,400¹	21,600/23,000¹,²	21,700/23,400¹	21,600/23,000¹,²	21,300/23,200¹	20,900/22,800¹,²
6.7L V8 H.O. Turbo Diesel	3.31	31,800	23,100/24,600¹	23,000/24,200¹,²	–	21,600/23,600¹/23,800²	–	21,600/23,600¹/23,800²	21,300/24,000¹	20,900/23,600¹,²
6.7L V8 H.O. Turbo Diesel	3.55	31,200³	–	–	–	–	–	23,000	–	–
6.7L V8 H.O. Turbo Diesel	3.55	35,200	23,100/25,900¹	23,000/25,800¹/27,600²	21,900/24,600¹	21,600/23,600¹/27,200²	–	21,600/23,600¹/27,000²	21,300/24,100¹	20,900/23,600¹/26,700²
6.8L V8 Gas	3.73	21,000	14,600¹	14,300/14,200¹,²	14,300/14,300¹	13,900/13,900¹,²	14,300/14,300¹	13,900/13,900¹,²	14,100/14,100¹	13,700/13,700¹/13,600²
6.8L V8 Gas	4.3	24,400	18,000¹	17,700/17.600¹,²	–	17,300/17,300¹,²	17,700/17,700¹	–	17,500/17,500¹	17,100/17,100¹/17,000²
7.3L V8 Gas	3.73	25,200	18,600¹	18,300/18,300¹,²	–	17,900/17,900¹,²	18,300/18,300¹	17,900/17,900¹,²	18,100/18,000¹	17,700/17,700¹,²
7.3L V8 Gas	4.3	28,600³	–	–	–	–	–	21,000	–	–
7.3L V8 Gas	4.3	29,000	22,400¹	22,100/22,100¹,²	–	21,700/21,700¹,²	22,100/22,100¹	21,700/21,700¹,²	21,900/21,800¹	21,500/21,500¹,²
Disclaimer
1. 18" All-Season Tires.
2. 18" and 20" All-Terrain Tires
3. TREMOR^™ Off-Road Package.
F-350/F-450 Super Duty DRW
Engine (Automatic Transmission)	Axle Ratio	GCWR	F-350 Regular Cab 4x2 141.5" WB 8' Box	F-350 Regular Cab 4x4 141.5" WB 8' Box	F-350 Crew Cab 4x2 175.9" WB 8' Box	F-350 Crew Cab 4x4 175.9" WB 8' Box	F-450 Regular Cab 4x2 141.5" WB 8' Box	F-450 Regular Cab 4x4 141.5" WB 8' Box	F-450 Crew Cab 4x2 175.9" WB 8' Box	F-450 Crew Cab 4x4 175.9" WB 8' Box
Units of Measure		(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)
6.7L V8 Turbo Diesel	3.55	40,000	32,500	32,000	31,800	31,400	–	–	–	–
6.7L V8 Turbo Diesel	4.1	43,900	36,400	35,900	35,700	35,300	–	–	–	–
6.7L V8 Turbo Diesel	4.3	43,500	–	–	–	–	–	–	34,800	33,100
6.7L V8 Turbo Diesel	4.3	46,700	–	–	–	–	38,600	37,300	–	–
6.7L V8 H.O. Turbo Diesel	3.55	40,500	32,900	32,500	32,300	31,900	–	–	–	–
6.7L V8 H.O. Turbo Diesel	4.1	45,600	38,000	37,600	37,400	36,100	–	–	–	–
6.7L V8 H.O. Turbo Diesel	4.3	43,500	–	–	–	–	–	–	34,700	33,000
6.7L V8 H.O. Turbo Diesel	4.3	46,700	–	–	–	–	38,600	37,200	–	–
6.7L V8 H.O. Turbo Diesel	4.3	48,000²	–	–	–	–	40,000	–	–	–
6.8L V8 Gas	4.3	25,400	18,600/18,900¹	18,200	–	17,600	–	–	–	–
7.3L V8 Gas	3.73	25,700	18,800	18,400	–	17,800	–	–	–	–
7.3L V8 Gas	4.3	29,500	22,500	22,200	–	21,600	–	–	–	–
Disclaimer
1. Heavy Duty Payload Package
2. 40k Gooseneck Tow Package

Payload

		GVWR (lbs.)				Maximum Payload
F-250 SRW Super Duty	Wheelbase	6.8L Gas	7.3L Gas	6.7L Diesel	6.7L H.O Diesel	6.8L Gas	7.3L Gas	6.7L Diesel	6.7L H.O Diesel
Units of Measure	(Millimetres)	(Kg.)	(Kg.)	(Kg.)	(Kg.)	(Kg.)	(Kg.)	(Kg.)	(Kg.)
4x2 Regular Cab	3,594	4,536	4,536	4,536	4,808¹	1,923	1,926	1,575	1,770
4x2 Regular Cab	3,594	–	–	4,808¹	–	–	–	1,777	–
4x2 Regular Cab	3,594	–	–	4,808	–	–	–	1,836	–
4x2 Super Cab	4,168	4,536	–	4,536	4,990¹	1,750	–	1,385	1,760
4x2 Super Cab	4,168	–	–	4,808	–	–	–	1,644	–
4x2 Super Cab	4,168	4,717	–	4,990¹	–	1,921	–	1,767	–
4x2 Crew Cab	4,056	4,536	4,536	4,536	4,899¹	1,765	1,778	1,401	1,686
4x2 Crew Cab	4,056	–	–	4,808	–	–	–	1,661	–
4x2 Crew Cab	4,056	4,581	4,581	4,899¹	–	1,800	1,812	1,693	–
4x2 Crew Cab	4,468	4,536	4,536	4,536	5,035¹	1,663	1,675	1,288	1,708
4x2 Crew Cab	4,468	–	–	4,808	–	–	–	1,547	–
4x2 Crew Cab	4,468	4,717	4,763	5,035¹	–	1,833	1,845	1,715	–
4x4 Regular Cab	3,594	4,536	4,536	4,536	5,035¹	1,747	1,752	1,399	1,769
4x4 Regular Cab	3,594	–	–	4,808	–	–	–	1,653	–
4x4 Regular Cab	3,594	4,672	4,672	4,990¹	–	1,867	1,872	1,775	–
4x4 Super Cab	4,168	4,536	4,536	4,536	5,171¹	1,579	1,585	1,227	1,777
4x4 Super Cab	4,168	–	–	4,808	–	–	–	1,480	–
4x4 Super Cab	4,168	4,808	4,808	5,080¹	–	1,834	1,840	1,693	–
4x4 Crew Cab	4,056	4,536	4,536	4,536	4,990¹	1,608	1,620	1,251	1,535
4x4 Crew Cab	4,056	–	4,672²	4,808	5,035¹	–	1,553	1,503	1,664
4x4 Crew Cab	4,056	4,763	4,763	5,035¹	–	1,818	1,830	1,671	–
4x4 Crew Cab	4,468	4,536	4,536	4,536	5,171¹	1,470	1,481	1,102	1,651
4x4 Crew Cab	4,468	–	–	4,808	–	–	–	1,354	–
4x4 Crew Cab	4,468	4,808	4,808	5,080¹	–	1,724	1,735	1,567	–
		GVWR (lbs.)				Maximum Payload
F-350 SRW Super Duty	Wheelbase	6.8L Gas	7.3L Gas	6.7L Diesel	6.7L H.O Diesel	6.8L Gas	7.3L Gas	6.7L Diesel	6.7L H.O Diesel
Units of Measure	(Millimetres)	(Kg.)	(Kg.)	(Kg.)	(Kg.)	(Kg.)	(Kg.)	(Kg.)	(Kg.)
17" Tires
4x2 Regular Cab	3,594	–	–	4,808	4,808	–	–	1,791	1,784
4x4 Regular Cab	3,594	4,717	4,717	4,990	4,990	1,877	1,811	1,779	1,773
4x2 Super Cab	4,168	4,717	–	4,990	4,990	1,901	–	1,770	1,763
4x4 Super Cab	4,168	4,899	4,899	5,126	5,126	1,906	1,808	1,737	1,723
4x2 Crew Cab	4,056	4,627	4,627	4,899	–	1,808	1,710	1,686	–
4x4 Crew Cab	4,056	4,808	4,808	5,080	5,080	1,812	1,714	1,686	1,679
4x2 Crew Cab	4,468	4,808	4,808	5,035	5,035	1,890	1,792	1,713	1,720
4x4 Crew Cab	4,468	4,944	4,944	5,216	5,216	1,840	1,760	1,708	1,701
18" All Seasonal Tires
4x2 Regular Cab	3,594	4,763	4,763	5,035	5,035	2,090	1,992	1,991	1,984
4x4 Regular Cab	3,594	4,944	4,944	5,216	5,216	2,077	2,011	1,979	1,972
4x2 Super Cab	4,168	4,944	–	5,216	5,216	2,101	–	1,969	1,963
4x4 Super Cab	4,168	5,126	5,216	5,216	5,216	2,106	2,008	1,800	1,786
4x2 Crew Cab	4,056	4,808	4,853	5,126	–	1,963	1,910	1,886	–
4x4 Crew Cab	4,056	4,990	4,990	5,216	5,216	1,966	1,914	1,795	1,788
4x2 Crew Cab	4,468	5,035	5,035	5,216	5,216	2,091	1,992	1,867	1,875
4x4 Crew Cab	4,468	5,126	5,126	5,443	5,443	1,995	1,915	1,908	1,901
18"/20" All Terrain Tires
4x4 Regular Cab	3,594	5,171	5,171	5,443	5,443	2,301	2,235	2,204	2,197
4x4 Super Cab	4,168	5,352	5,352	5,579	5,579	2,330	2,232	2,161	2,147
4x4 Crew Cab	4,056	5,216	5,216	5,443	5,443	2,190	2,092	2,020	2,013
4x4 Crew Cab	4,056	–	5,216²	–	5,443²	–	2,034	–	1,955
4x4 Crew Cab	4,468	5,398	5,398	5,625	5,625	2,264	2,185	2,087	2,081
		GVWR (lbs.)				Maximum Payload
F-350 DRW Super Duty	Wheelbase	6.8L Gas	7.3L Gas	6.7L Diesel	6.7L H.O Diesel	6.8L Gas	7.3L Gas	6.7L Diesel	6.7L H.O Diesel
Units of Measure	(Millimetres)	(Kg.)	(Kg.)	(Kg.)	(Kg.)	(Kg.)	(Kg.)	(Kg.)	(Kg.)
4x2 Regular Cab	3,594	6,350	6,350	6,350	6,350	3,513	3,463	3,153	3,146
4x2 Regular Cab	3,594	6,350³	–	–	–	3,629	–	–	–
4x4 Regular Cab	3,594	6,350	6,350	6,350	6,350	3,329	3,267	2,957	2,950
4x2 Crew Cab	4,468	6,350	6,350	6,350	6,350	–	–	2,846	2,840
4x4 Crew Cab	4,468	6,350	6,350	6,350	6,350	3,042	2,993	2,660	2,654
		GVWR (lbs.)				Maximum Payload
F-450 DRW Super Duty	Wheelbase	6.8L Gas	7.3L Gas	6.7L Diesel	6.7L H.O Diesel	6.8L Gas	7.3L Gas	6.7L Diesel	6.7L H.O Diesel
Units of Measure	(Millimetres)	(Kg.)	(Kg.)	(Kg.)	(Kg.)	(Kg.)	(Kg.)	(Kg.)	(Kg.)
4x2 Regular Cab	3,594	–	–	6,350	6,350	–	–	2,868	2,860
4x2 Regular Cab	3,594	–	–	–	6,350⁴	–	–	–	2,940⁵
4x4 Regular Cab	3,594	–	–	6,350	6,350	–	–	2,700	2,693
4x2 Crew Cab	4,468	–	–	6,350	6,350	–	–	2,563	2,556
4x4 Crew Cab	4,468	–	–	6,350	6,350	–	–	2,413	2,405
Disclaimers
Payload capability will be reduced based on trim series, option content, and passengers. See label on door jamb for carrying capacity of a specific vehicle.

		GVWR (lbs.)				Maximum Payload
F-250 SRW Super Duty	Wheelbase	6.8L Gas	7.3L Gas	6.7L Diesel	6.7L H.O Diesel	6.8L Gas	7.3L Gas	6.7L Diesel	6.7L H.O Diesel
Units of Measure	(Inches)	(Lbs.)	(Lbs.)	(Lbs.)	(Lbs.)	(Lbs.)	(Lbs.)	(Lbs.)	(Lbs.)
4x2 Regular Cab	141.5"	10,000	10,000	10,000	10,600¹	4,240	4,246	3,473	3,903
4x2 Regular Cab	141.5"	–	–	10,600¹	–	–	–	3,918	–
4x2 Regular Cab	141.5"	–	–	10,600	–	–	–	4,048	–
4x2 Super Cab	164.1"	10,000	–	10,000	11,000¹	3,859	–	3,053	3,880
4x2 Super Cab	164.1"	–	–	10,600	–	–	–	3,625	–
4x2 Super Cab	164.1"	10,400	–	11,000¹	–	4,234	–	3,896	–
4x2 Crew Cab	159.7"	10,000	10,000	10,000	10,800¹	3,892	3,919	3,089	3,717
4x2 Crew Cab	159.7"	–	–	10,600	–	–	–	3,662	–
4x2 Crew Cab	159.7"	10,100	10,100	10,800¹	–	3,968	3,995	3,732	–
4x2 Crew Cab	175.9"	10,000	10,000	10,000	11,100¹	3,667	3,693	2,840	3,766
4x2 Crew Cab	175.9"	–	–	10,600	–	–	–	3,411	–
4x2 Crew Cab	175.9"	10,400	10,500	11,100¹	–	4,042	4,068	3,781	–
4x4 Regular Cab	141.5"	10,000	10,000	10,000	11,000¹	3,852	3,863	3,085	3,899
4x4 Regular Cab	141.5"	–	–	10,600	–	–	–	3,644	–
4x4 Regular Cab	141.5"	10,300	10,300	11,000¹	–	4,115	4,126	3,914	–
4x4 Super Cab	164.1"	10,000	10,000	10,000	11,400¹	3,482	3,494	2,706	3,918
4x4 Super Cab	164.1"	–	–	10,600	–	–	–	3,263	–
4x4 Super Cab	164.1"	10,600	10,600	11,200¹	–	4,044	4,056	3,733	–
4x4 Crew Cab	159.7"	10,000	10,000	10,000	11,000²	3,546	3,572	2,757	3,384
4x4 Crew Cab	159.7"	–	10,300²	10,600	11,100¹	–	3,424	3,314	3,669
4x4 Crew Cab	159.7"	10,500	10,500	11,100¹	–	4,008	4,034	3,684	–
4x4 Crew Cab	175.9"	10,000	10,000	10,000	11,400¹	3,240	3,266	2,430	3,640
4x4 Crew Cab	175.9"	–	–	10,600	–	–	–	2,985	–
4x4 Crew Cab	175.9"	10,600	10,600	11,200¹	–	3,800	3,826	3,455	–
		GVWR (lbs.)				Maximum Payload
F-350 SRW Super Duty	Wheelbase	6.8L Gas	7.3L Gas	6.7L Diesel	6.7L H.O Diesel	6.8L Gas	7.3L Gas	6.7L Diesel	6.7L H.O Diesel
Units of Measure	(Inches)	(Lbs.)	(Lbs.)	(Lbs.)	(Lbs.)	(Lbs.)	(Lbs.)	(Lbs.)	(Lbs.)
17" Tires
4x2 Regular Cab	141.5"	–	–	10,600	10,600	–	–	3,948	3,933
4x4 Regular Cab	141.5"	10,400	10,400	11,000	11,000	4,137	3,992	3,923	3,908
4x2 Super Cab	164.1"	10,400	–	11,000	11,000	4,190	–	3,902	3,886
4x4 Super Cab	164.1"	10,800	10,800	11,300	11,300	4,201	3,985	3,829	3,798
4x2 Crew Cab	159.7"	10,200	10,200	10,800	–	3,987	3,769	3,718	–
4x4 Crew Cab	159.7"	10,600	10,600	11,200	11,200	3,994	3,778	3,717	3,702
4x2 Crew Cab	175.9"	10,600	10,600	11,100	11,100	4,167	3,951	3,777	3,793
4x4 Crew Cab	175.9"	10,900	10,900	11,499	11,499	4,056	3,880	3,765	3,750
18" All Seasonal Tires
4x2 Regular Cab	141.5"	10,500	10,500	11,100	11,100	4,608	4,391	4,389	4,374
4x4 Regular Cab	141.5"	10,900	10,900	11,499	11,499	4,578	4,433	4,363	4,348
4x2 Super Cab	164.1"	10,900	–	11,499	11,499	4,631	–	4,342	4,327
4x4 Super Cab	164.1"	11,300	11,300	11,499	11,499	4,642	4,426	3,969	3,938
4x2 Crew Cab	159.7"	10,600	10,700	11,300	–	4,328	4,211	4,159	–
4x4 Crew Cab	159.7"	11,000	11,000	11,499	11,499	4,335	4,219	3,957	3,942
4x2 Crew Cab	175.9"	11,100	11,100	11,499	11,499	4,609	4,392	4,117	4,133
4x4 Crew Cab	175.9"	11,300	11,300	12,000	12,000	4,398	4,221	4,207	4,192
18"/20" All Terrain Tires
4x4 Regular Cab	141.5"	11,400	11,400	12,000	12,000	5,073	4,928	4,859	4,844
4x4 Super Cab	164.1"	11,800	11,800	12,300	12,300	5,137	4,921	4,765	4,734
4x4 Crew Cab	159.7"	11,499	11,499	12,000	12,000	4,829	4,613	4,453	4,438
4x4 Crew Cab	159.7"	–	11,499²	–	12,000²	–	4,484	–	4,309
4x4 Crew Cab	175.9"	11,900	11,900	12,400	12,400	4,992	4,816	4,602	4,587
		GVWR (lbs.)				Maximum Payload
F-350 DRW Super Duty	Wheelbase	6.8L Gas	7.3L Gas	6.7L Diesel	6.7L H.O Diesel	6.8L Gas	7.3L Gas	6.7L Diesel	6.7L H.O Diesel
Units of Measure	(Inches)	(Lbs.)	(Lbs.)	(Lbs.)	(Lbs.)	(Lbs.)	(Lbs.)	(Lbs.)	(Lbs.)
4x2 Regular Cab	141.5"	14,000	14,000	14,000	14,000	7,744	7,635	6,952	6,935
4x2 Regular Cab	141.5"	14,000³	–	–	–	8,000	–	–	–
4x4 Regular Cab	141.5"	14,000	14,000	14,000	14,000	7,340	7,203	6,519	6,504
4x2 Crew Cab	175.9"	14,000	14,000	14,000	14,000	–	–	6,275	6,261
4x4 Crew Cab	175.9"	14,000	14,000	14,000	14,000	6,706	6,599	5,865	5,850
		GVWR (lbs.)				Maximum Payload
F-450 DRW Super Duty	Wheelbase	6.8L Gas	7.3L Gas	6.7L Diesel	6.7L H.O Diesel	6.8L Gas	7.3L Gas	6.7L Diesel	6.7L H.O Diesel
Units of Measure	(Inches)	(Lbs.)	(Lbs.)	(Lbs.)	(Lbs.)	(Lbs.)	(Lbs.)	(Lbs.)	(Lbs.)
4x2 Regular Cab	141.5"	–	–	14,000	14,000	–	–	6,322	6,305
4x2 Regular Cab	141.5"	–	–	–	14,000⁴	–	–	–	6,482⁵
4x4 Regular Cab	141.5"	–	–	14,000	14,000	–	–	5,953	5,938
4x2 Crew Cab	175.9"	–	–	14,000	14,000	–	–	5,651	5,636
4x4 Crew Cab	175.9"	–	–	14,000	14,000	–	–	5,319	5,303
Disclaimers
Payload capability will be reduced based on trim series, option content, and passengers. See label on door jamb for carrying capacity of a specific vehicle.

SUVs & Cars

Capable, convenient and versatile

Trucks & Vans

Hauling, towing, and off-roading

Electric & Hybrid

What does going electric mean?

Performance Vehicles

Commercial Vehicles

Ford Pro offers the tools, software and services to keep your business on track and crews on the road.

Future Vehicles

Catch up with all the latest news

Recent Searches

Clear

Suggested Searches

Search History

Recent Searches

Suggested Searches

Search History

2025 Super Duty® F-350® LARIAT®

Key Features

BLIS® (Blind Spot Information System) with Trailer Coverage

SYNC® 4 With 12" LCD Touchscreen

12" Customizable Digital Instrument Cluster

Exterior Features

Appearance

Standard

Optional

Protection

Optional

Windows & Glass

Standard

Optional

Exterior

Optional

Interior Features

Climate

Standard

Comfort and Convenience

Standard

Optional

Entertainment Systems

Standard

Optional

Seating

Standard

Optional

Packages

Packages

Standard

Optional

Power and Handling

Handling

Standard

Optional

Power

Standard

Optional

Wheels & Tires

Standard

Optional

Safety

Safety

Standard

Optional

Security

Standard

Specifications

Highlights

Exterior

Interior

Capacities

Engine

Chassis

Towing

Payload

2025 Super Duty^®

F-350^® LARIAT^®

BLIS^® (Blind Spot Information System) with Trailer Coverage

SYNC^® 4 With 12" LCD Touchscreen
