2024 Bronco® Sport Heritage SUV | Model Details & Specs

Exterior Features

Appearance

Standard

Manual liftgate
Flip-Up Rear Glass

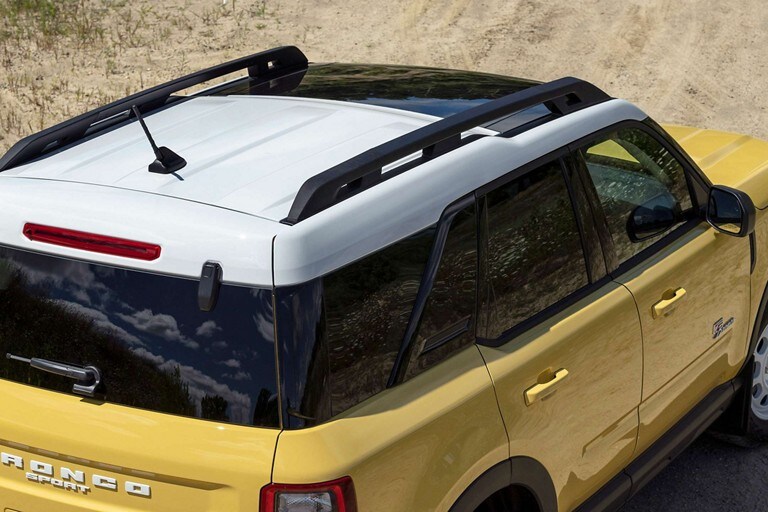

Painted Oxford White Roof - Heritage
Safari-Style Roof
Unique Side Decals-Oxford White with Heritage Bronco Script
Door Handles - Moulded-in-Colour, Black
Non-Configurable Daytime Running Lamps (DRL)
LED Fog Lamps

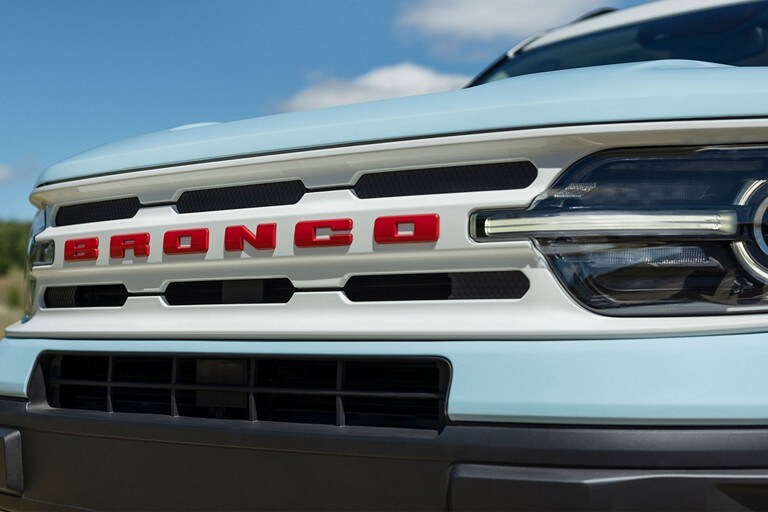

Grille - Heritage - Oxford White with Red Bronco^® Lettering
Mirrors, Sideview - Power Glass, Manual-Fold, Black Finish
Mirrors, Sideview - Heated Glass
Unique Roof Rack Side Rails - Black
FloodLights (Two) Adjustable - Liftgate
Bottle Opener-Located in the Hatch

Standard Features

Standard

Active Grille Shutters

Free Standing Packages & Options

Optional

Roof-Rail Crossbars
Cargo Management System (Shelf/Divider/Table)

Windows & Glass

Standard

Privacy Glass - 2nd Row Side and Liftgate
Rear Fixed-intermittent/continuous wiper

Interior Features

Climate

Standard

Electronic Automatic Temperature Control with Rear Air Duct

Comfort and Convenience

Standard

Intelligent Access with Push-Button Start
Remote Start System
4.2-inch Instrument Cluster
Carpeted Flooring- first and second row
Carpeted floor mats, first row
Second-Row Seatback Carpeted with Rubberized Seatback Mat
Rubberized Cargo Floor
Pre-Collision Assist with Automatic Emergency Braking
Lane-Keeping System
BLIS^® with Cross-Traffic Alert
Centre floor console with armrest
Rear Centre Armrest (Fold-down with two cupholders)
Oxford White Door Ring
Cup holders, 8 total
Illuminated Visor Vanity Mirrors (Driver and Front Passenger)
Terrain Management System^™ with Five G.O.A.T Modes^™
Front and Rear Map Lights
Auto-dimming rearview mirror
Powerpoints – 12V (media bin and cargo area) & Dual USB Ports Type C & Std A (media bin, inside centre console and back of centre console
Steering Wheel with Bronco Badge, cruise and audio controls
Manual tilt and telescoping steering column
Front Row: Centre Floor Console Armrest, Glove Box, Media Bin, Overhead Console with Sunglasses Storage
Power Windows with Driver's Front One-Touch Down (Driver's Only)
Cargo Tie-Down Carabiner Hooks and Loops
Unique Armrest and Centre Console – Navy Pier Micro Suede with Race Red Stitching

Optional

Universal Garage Door Opener
Floor Liners- First and second row (without Carpet Mats)
Rubberized Cargo Floor Mat
Power Moonroof
Wireless Charging Pad
Premium-wrapped steering wheel with Bronco Badge, cruise and audio controls

Entertainment Systems

Standard

AM/FM stereo with 6 speakers
AppLink^®
911 Assist^®
Apple Carplay^™ and Android Auto^™ Compatibility
SiriusXM^™ Satellite Radio
SYNC^® 3 with Enhanced Voice Recognition Communications and Entertainment System, 8" LCD Capacitive Touchscreen in Centre Stack with Swipe Capability, and Pinch-to-Zoom capability included when equipped with available Voice-Activated Touchscreen Navigation System
FordPass Connect^™

Optional

Voice-Activated Touchscreen Navigation System with Pinch-to-Zoom Capability, Sirius XM^™ Traffic with Travel Link^®

Seating

Standard

Unique Plaid Cloth Seating
Heated Front Seats
8-way Power Driver seat
4-way Manual Passenger Seat
Second-Row, 60/40 Split-Fold-Flat

Packages

Power and Handling

Handling

Standard

Four-Wheel Disc Brakes with Anti-Lock Brake System (ABS)
4x4
Electronic Traction control

Optional

Adaptive Cruise Control with Stop-and-Go and Lane Centring, and Speed Sign Recognition
Evasive Steering Assist
Rear Parking Sensors

Power

Standard

Engine Block Heater
Post-Collision Braking
Electric Parking Brake
1.5L EcoBoost^® Engine with Auto Start-Stop Technology
Electric Power-Assisted Steering (EPAS)
8-Speed Automatic Transmission

Wheels & Tires

Standard

17-inch Oxford White Painted Aluminum Wheels
225/65R17 Continental All-Terrain Tires

Safety

Standard

Personal Safety System^™
Driver and front row passenger dual-stage
Driver Knee Airbag
Front seat-mounted side-impact airbags
Safety Canopy^® System - Front and Second Row Safety Canopy^® Side Curtain with Rollover Sensor
Lower Anchors and Tether Anchors for Children (LATCH)
SOS Post-Crash Alert System^™
Full-Size Spare Tire
Full-Size Spare Wheel
Individual Tire Pressure Monitoring System (ITPMS)
Belt-Minder^® (Front and Second Row)

Security

Standard

MyKey^®
SecuriLock^® Passive Anti-Theft System
Perimeter alarm
LED Headlamps with LED Signature Lighting
Auto High-Beam Headlamps
Rear View Camera
AdvanceTrac^® with RSC^® (Roll Stability Control^™)

Specifications

Exterior Dimensions


Drive System	4x4
	mm
Wheelbase	2,670
Length	4,386
Height - Excluding Options (2.0L/1.5L)	1,813 / 1,785
Width - Including Mirrors	2,087
Width - Excluding Mirrors	1,888
Width - Mirrors Folded	1,938
Track - Front	1,610
Track - Rear	1,595


Drive System	4x4
	in.
Wheelbase	105.1
Length	172.7
Height - Excluding Options (2.0L/1.5L)	71.4 / 70.3
Width - Including Mirrors	82.2
Width - Excluding Mirrors	74.3
Width - Mirrors Folded	76.3
Track - Front	63.4
Track - Rear	62.8

Interior Dimensions


Head Room	mm
First Row (without Moonroof)	1,055
First Row (with Moonroof)	992
Second Row	1,059
Leg Room
First Row (maximum)	1,077
Second Row	936
Hip Room
First Row	1,403
Second Row	1,356
Shoulder Room
First Row	1,455
Second Row	1,412


Head Room	in.
First Row (without Moonroof)	41.5
First Row (with Moonroof)	39.1
Second Row	41.7
Leg Room
First Row (maximum)	42.4
Second Row	36.9
Hip Room
First Row	55.2
Second Row	53.4
Shoulder Room
First Row	57.3
Second Row	55.6

Capacities: Passengers, Luggage, Fuel


Maximum Seating Capacity	5
Standard Seating Capacity	5
	L (unless otherwise noted)
Passenger Volume - Base Roof	2,992
Passenger Volume - Moonroof	2,897
Cargo Volume Behind 1st Row (w/o Moonroof)	1,845
Cargo Volume Behind 1st Row (w/Moonroof)	1,703
Cargo Volume Behind 2nd Row (w/o Moonroof)	920
Cargo Volume Behind 2nd Row (w/Moonroof)	822
Fuel capacity	61
Base Curb Weight - 1.5L EcoBoost^®	1,568 kg
Base Curb Weight - 2.0L EcoBoost^®	1,684 kg


Maximum Seating Capacity	5
Standard Seating Capacity	5
	cu. ft. (unless otherwise noted)
Passenger Volume - Base Roof	105.7
Passenger Volume - Moonroof	102.3
Cargo Volume Behind 1st Row (w/o Moonroof)	65.2
Cargo Volume Behind 1st Row (w/Moonroof)	60.1
Cargo Volume Behind 2nd Row (w/o Moonroof)	32.5
Cargo Volume Behind 2nd Row (w/Moonroof)	29
Fuel capacity	16 gal.
Base Curb Weight - 1.5L EcoBoost^®	3,457 lbs.
Base Curb Weight - 2.0L EcoBoost^®	3,713 lbs.

Engine Specifications


	Big Bend^®/Heritage/Free Wheeling^™/Outer Banks^®	Badlands^®
Engine type	1.5L EcoBoost^® Engine with Auto Start-Stop Technology	2.0L EcoBoost^® Engine with Auto Start-Stop Technology
	1.5L Ti-VCT GTDI I-3	2.0L Ti-VCT GTDI I-3
Drive type	4x4	Advanced 4x4 with Twin-Clutch Rear Drive Unit
Exhaust	Dual Exhaust	Dual Exhaust
Transmission type	8-speed Automatic Transmission	8-speed Automatic Transmission; SelectShift^® with Paddle shifters
Horsepower* (SAE net@rpm)	181 @ 6,000 rpm	250 @ 5,500 rpm
Torque* (lb.-ft.@rpm)	190 @ 3,000 rpm	277 @ 3,000 rpm
Compression ratio	11.0:1	10.0:1
Valve lifters	Direct Injection and Port Fuel Injection	Direct acting mechanical bucket
Engine block material	Aluminum	Aluminum
Cylinder head material	Aluminum	Aluminum
Induction system	Single Turbocharged	Single Twin-Scroll Turbocharged
Fuel delivery	Direct injection	Direct injection
Fuel (minimum)	Regular unleaded	Regular unleaded
*Horsepower and torque ratings based on premium fuel per SAE J1349 standard. Your results may vary.


	Big Bend^®/Heritage/Free Wheeling^™/Outer Banks^®	Badlands^®
Engine type	1.5L EcoBoost^® Engine with Auto Start-Stop Technology	2.0L EcoBoost^® Engine with Auto Start-Stop Technology
	1.5L Ti-VCT GTDI I-3	2.0L Ti-VCT GTDI I-3
Drive type	4x4	Advanced 4x4 with Twin-Clutch Rear Drive Unit
Exhaust	Dual Exhaust	Dual Exhaust
Transmission type	8-speed Automatic Transmission	8-speed Automatic Transmission; SelectShift^® with Paddle shifters
Horsepower* (SAE net@rpm)	181 @ 6,000 rpm	250 @ 5,500 rpm
Torque* (lb.-ft.@rpm)	190 @ 3,000 rpm	277 @ 3,000 rpm
Compression ratio	11.0:1	10.0:1
Valve lifters	Direct Injection and Port Fuel Injection	Direct acting mechanical bucket
Engine block material	Aluminum	Aluminum
Cylinder head material	Aluminum	Aluminum
Induction system	Single Turbocharged	Single Twin-Scroll Turbocharged
Fuel delivery	Direct injection	Direct injection
Fuel (minimum)	Regular unleaded	Regular unleaded
*Horsepower and torque ratings based on premium fuel per SAE J1349 standard. Your results may vary.

Towing


Model	Big Bend^®/Heritage/Free Wheeling^™/Outer Banks^®	Badlands^®
Engine	1.5L EcoBoost^® Engine with Auto Start-Stop Technology	2.0L EcoBoost^® Engine with Auto Start-Stop Technology
Available Features	Class II Trailer Tow Package w/ Trailer Sway Control	Class II Trailer Tow Package w/ Trailer Sway Control
Max. Trailer Weight	907 kg	997 kg


Model	Big Bend^®/Heritage/Free Wheeling^™/Outer Banks^®	Badlands^®
Engine	1.5L EcoBoost^® Engine with Auto Start-Stop Technology	2.0L EcoBoost^® Engine with Auto Start-Stop Technology
Available Features	Class II Trailer Tow Package w/ Trailer Sway Control	Class II Trailer Tow Package w/ Trailer Sway Control
Max. Trailer Weight	2,000 lbs.	2,200 lbs.

Chassis Specifications


Front suspension	Independent MacPherson strut-type with stabilizer bar, twin-tube hydraulic gas-pressurized shocks
Rear suspension	Independent double lateral link semi-trailing arms with stabilizer bar, springs and hydraulic gas-pressurized shocks
Traction assist	AdvanceTrac^® with RSC^® (Roll Stability Control^™)
Brakes	Four-Wheel Disc Brakes with Anti-Lock Brake System (ABS)
Steering	Electric Power-Assisted Steering (EPAS)


Front suspension	Independent MacPherson strut-type with stabilizer bar, twin-tube hydraulic gas-pressurized shocks
Rear suspension	Independent double lateral link semi-trailing arms with stabilizer bar, springs and hydraulic gas-pressurized shocks
Traction assist	AdvanceTrac^® with RSC^® (Roll Stability Control^™)
Brakes	Four-Wheel Disc Brakes with Anti-Lock Brake System (ABS)
Steering	Electric Power-Assisted Steering (EPAS)

Highlights


Engine Highlights
	Big Bend^®/Heritage/Free Wheeling^™/Outer Banks^®	Badlands^®
Engine Type	1.5L EcoBoost^® Engine with Auto Start-Stop Technology	2.0L EcoBoost^® Engine with Auto Start-Stop Technology

Vehicle Highlights
Max Seating Capacity	5
Drive Type	4x4
Transmission	8-Speed Automatic
Wheelbase	2,670 mm
Maximum Towing Capacity	2,200 lbs. (Bronco^® Sport Badlands^® model with available Class II Trailer Tow Package w/ Trailer Sway Control)
Wheels Available	17" Carbonized Grey-Painted High Gloss Aluminum - Standard on Bronco^® Sport Big Bend^® model
	17" Oxford White Painted Aluminum - Standard on Heritage
	17" Ebony Race Red Painted - Standard on Free Wheeling^™
	18" Ebony Black-Painted Machined-Face Aluminum - Standard on Bronco^® Sport Outer Banks^® model
	17" Carbonized Grey-Painted Aluminum - Standard on Bronco^® Sport Badlands^® model
	18" Ebony Black-Painted Machined-Face Aluminum (64M) - Available on Bronco^® Sport Big Bend^® model
	17" Matte Black Painted - Optional on Big Bend^® as part of Black Appearance Package
	17" Carbonized Grey-Painted Low Gloss Aluminum - Available on Bronco^® Sport Badlands^® model
Warranty	Basic: 3 years / 60,000 km
	Powertrain: 5 years / 100,000 km
	Safety Restraint System: 5 years / 100,000 km
	Corrosion (Perforation only): 5 years / Unlimited distance
	Roadside Assistance Program: 5 years / 100,000 km


Engine Highlights
	Big Bend^®/Heritage/Free Wheeling^™/Outer Banks^®	Badlands^®
Engine Type	1.5L EcoBoost^® Engine with Auto Start-Stop Technology	2.0L EcoBoost^® Engine with Auto Start-Stop Technology

Vehicle Highlights
Max Seating Capacity	5
Drive Type	4x4
Transmission	8-Speed Automatic
Wheelbase	105.1 in.
Maximum Towing Capacity	2,200 lbs. (Bronco^® Sport Badlands^® model with available Class II Trailer Tow Package w/ Trailer Sway Control)
Wheels Available	17" Carbonized Grey-Painted High Gloss Aluminum - Standard on Bronco^® Sport Big Bend^® model
	17" Oxford White Painted Aluminum - Standard on Heritage
	17" Ebony Race Red Painted - Standard on Free Wheeling^™
	18" Ebony Black-Painted Machined-Face Aluminum - Standard on Bronco^® Sport Outer Banks^® model
	17" Carbonized Grey-Painted Aluminum - Standard on Bronco^® Sport Badlands^® model
	18" Ebony Black-Painted Machined-Face Aluminum (64M) - Available on Bronco^® Sport Big Bend^® model
	17" Matte Black Painted - Optional on Big Bend^® as part of Black Appearance Package
	17" Carbonized Grey-Painted Low Gloss Aluminum - Available on Bronco^® Sport Badlands^® model
Warranty	Basic: 3 years / 36,000 miles
	Powertrain: 5 years / 60,000 miles
	Safety Restraint System: 5 years / 60,000 miles
	Corrosion (Perforation only): 5 years / Unlimited miles
	Roadside Assistance Program: 5 years / 60,000 miles

SUVs & Cars

Capable, convenient and versatile

Trucks & Vans

Hauling, towing, and off-roading

Electric & Hybrid

What does going electric mean?

Performance Vehicles

Commercial Vehicles

Ford Pro offers the tools, software and services to keep your business on track and crews on the road.

Future Vehicles

Catch up with all the latest news

Recent Searches

Clear

Suggested Searches

Search History

Recent Searches

Suggested Searches

Search History

2024 Bronco® Sport Heritage

Key Features

Oxford White Roof with Oxford White Wheels

Oxford White Grille

Plaid Interior Seating

Exterior Features

Appearance

Standard

Standard Features

Standard

Free Standing Packages & Options

Optional

Windows & Glass

Standard

Interior Features

Climate

Standard

Comfort and Convenience

Standard

Optional

Entertainment Systems

Standard

Optional

Seating

Standard

Packages

Packages

Standard

Optional

Standard Features

Standard

Free Standing Packages & Options

Optional

Power and Handling

Handling

Standard

Optional

Power

Standard

Wheels & Tires

Standard

Safety

Safety

Standard

Security

Standard

Specifications

Exterior Dimensions

Interior Dimensions

Capacities: Passengers, Luggage, Fuel

Engine Specifications

Towing

Chassis Specifications

Highlights

Build & Price

Search Inventory

Locate a Dealer
